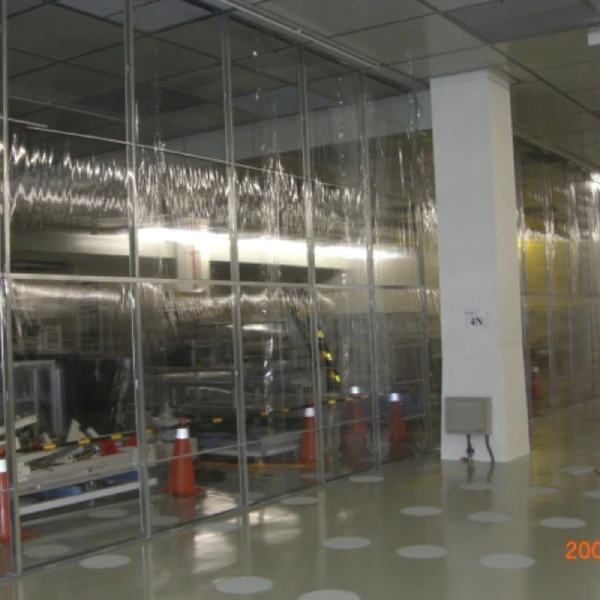

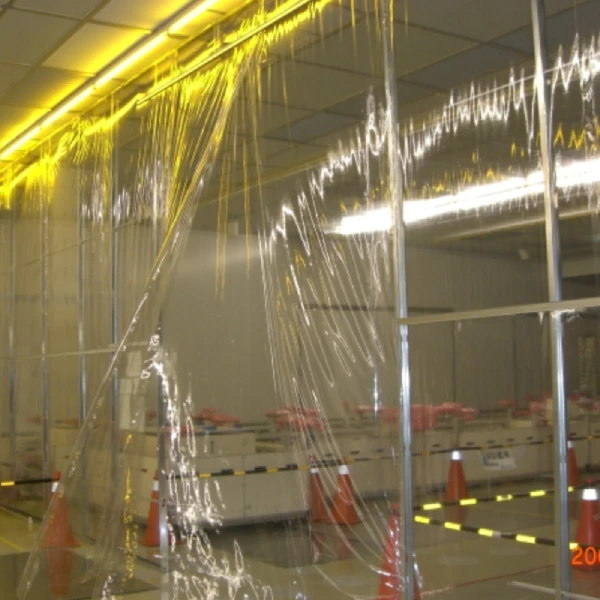

Anti-Static PVC Clean Booth / ESD PVC Strip Curtain Enclosure
The Anti-Static PVC Clean Booth is a flexible, cost-effective contamination control enclosure designed to create a local clean zone within general workshops or existing cleanrooms. Constructed with anti-static PVC strip curtains and a lightweight industrial frame, it provides excellent accessibility, static dissipation, and reliable particle protection for ESD-sensitive processes. This unit is ideal for applications requiring ISO Class 7–8 (Class 10,000–100,000) cleanliness with frequent personnel or material movement.
Request a Free Quote
Anti-Static PVC Clean Booth: Flexible ESD-Safe Contamination Control
The anti-static PVC clean booth is a flexible, cost-effective contamination-control enclosure that creates a local clean zone inside general workshops or existing cleanrooms. Built with anti-static PVC strip curtains and a lightweight industrial frame, it provides static dissipation and reliable particle protection for ESD-sensitive semiconductor, electronics and biopharma processes.
Specified across our Malaysia prefabricated cleanrooms, the booth complements our clean room partition panels, Clean Panel Clean Booth and laminar flow hood manufacturers range.
Anti-Static PVC Clean Booth Specifications
Standard configuration for the Wonclean anti-static PVC clean booth. Height, layout and curtain thickness are all customizable to project and cleanroom classification requirements.
| Surface resistivity | 1 × 10⁶ – 1 × 10⁹ Ω/sq (ASTM D257) |
|---|---|
| Static decay time | ≤ 0.5 s (1000V → 100V, ANSI/ESD STM11.31) |
| Curtain material | Phthalate-free, UV-stabilized PVC with carbon-black conductive network |
| Thickness options | 1.5 / 2.0 / 3.0 mm (150 mm standard roll width) |
| Frame system | Anodized aluminum extrusion 6063-T5, tool-free assembly |
| Maximum height | 3.2 m standard (4.5 m with reinforcement) |
| Particle shedding | < 10 particles ≥ 0.5 µm/m³/hour |
| Entry configuration | Dual-strip vestibule entry |
| Cleaning compatibility | IPA, 70% ethanol, hydrogen peroxide vapor |
| Cleanliness grade | ISO 14644-1 Class 7–8 ready |
Values shown are standard/representative configurations. Confirm final certified figures (surface resistivity, static decay) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.
Anti-Static PVC Clean Booth Construction
The embedded conductive network is the engineering secret. A carbon-black network through the PVC gives static decay ≤ 0.5 s to prevent tribocharging, while a tool-free aluminum frame and dual-strip vestibule entry let the booth deploy in under a day on existing HVAC and laminar flow.
Why Choose Our Anti-Static PVC Clean Booth
Rapid ESD protection
Static-dissipative strip curtains with ≤ 0.5 s decay prevent tribocharging in ESD-sensitive work.
Deploys in under a day
Establishes a clean zone fast without full cleanroom construction or structural modification.
Tool-free reconfiguration
Snap-together modular assembly allows quick reconfiguration as production needs change.
Low particle generation
< 10 particles ≥ 0.5 µm/m³/hour keeps the local zone within ISO Class 7–8 limits.
Scalable & flexible
Heights to 4.5 m with reinforcement and flexible layouts suit benches and full work cells.
Disinfection-ready
Resists IPA, ethanol and hydrogen peroxide vapor cycles for routine cleanroom sanitation.
Anti-Static PVC Clean Booth Applications
Deployed as ESD-safe local clean zones across regulated and electronics-sensitive industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
Request a Free Quote Chat on WhatsAppWhere should air showers be installed in a cleanroom?
Install between changing rooms and clean areas, or between ISO 8/ISO 7 classified areas and unclean areas. Personnel pass through after changing into cleanroom clothing but before entering the controlled environment
What is involved in the construction of a modular cleanroom?
To assemble laboratory spaces efficiently, modular components are preferred. An assembled cleanroom utilizes prefabricated sections to reduce on-site construction time. The underlying aluminum profile system provides the necessary framework for mounting panels and doors, ensuring precision alignment and structural rigidity throughout the facility.
What are the key considerations for air shower design?
Selecting the right air shower requires careful planning. Proper air shower design ensures effective personnel decontamination before entering controlled environments. Specifications depend on room size. Consulting an experienced air shower manufacturer helps determine optimal placement. Compliance with standards is essential. Regular maintenance schedules must be established to sustain performance over time.
What defines quality in clean room door systems?
Sealing integrity is vital. air tight sliding clean room doors prevent pollutants from entering. Each air tight sliding cleanroom door must meet pressure ratings. Reputable air tight sliding cleanroom door manufacturers provide leakage certification. Automatic mechanisms reduce human contact risks. Material selection prioritizes durability and ease of cleaning to meet hygiene protocols. Installation requires precise alignment.
