Ceiling Grid System
Cleanroom ceiling grid
Thread aluminium ceilings is one type lightweight ceiling mesh system with strong load-bearing capacity, small size and light weight, aluminum alloy threaded suspension ceiling grid system.
Request a Free Quote
Clean Room Ceiling Grid: Structural Backbone for Modular Cleanroom Ceilings

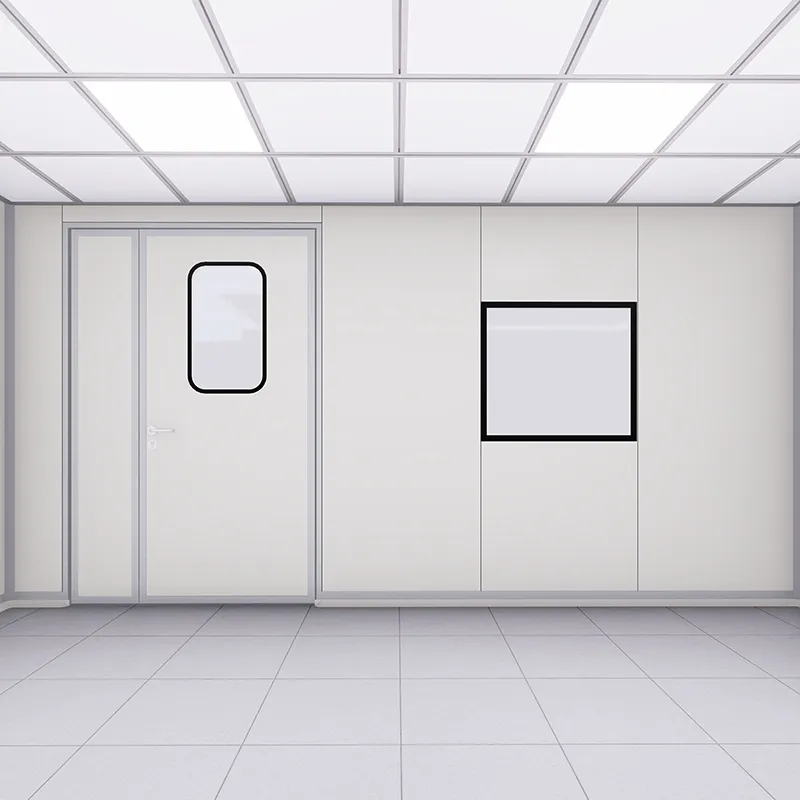

A precision-engineered clean room ceiling grid serves as the structural backbone for modular cleanroom environments across high-regulation industries, carrying ceiling panels, FFUs, lighting and monitoring hardware on a walkable, load-rated framework with minimal particulate shedding.
It integrates with our modular cleanroom and lab fit-outs — including the laboratory cabinet and chemical lab furniture ranges — and is supplied within our Malaysia prefabricated cleanrooms programme.
Cleanroom Ceiling Grid Specifications
Standard configuration for the Wonclean cleanroom ceiling grid. Profile, module spacing and finish are all customizable to project and cleanroom classification requirements.
| Material | Anodized 6063-T5 aluminum alloy (min 15 µm anodizing) |
|---|---|

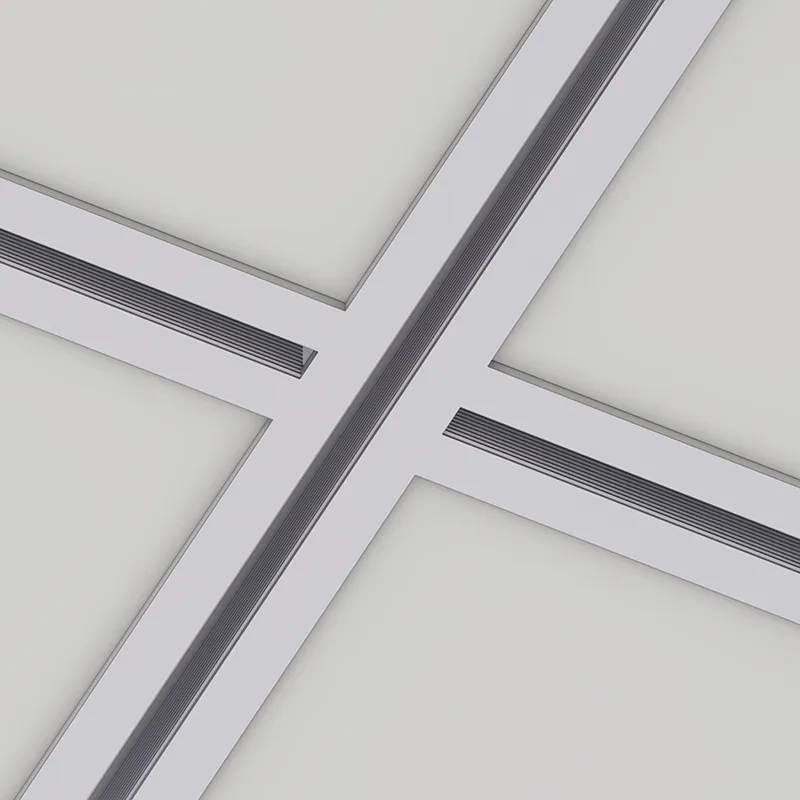

| Grid profile | Standard T-bar (optional 12 mm low-profile variant) |
| Modular dimensions | 600×600 / 600×1200 / 1200×1200 mm |
| Load capacity | ≥ 15 kg/m² uniform; ≥ 35 kg point load at suspension |
| Flatness tolerance | ≤ 0.3 mm per linear metre |
| Fire rating | Class A (ASTM E84) |
| Corrosion resistance | 1,000-hour neutral salt spray (ASTM B117) |
| Surface finish | Matte anodized (Ra ≤ 0.8 µm) (electropolished option) |
| Vertical fine-tuning | ± 15 mm during commissioning |
| Module replacement | ~12 minutes per module |
Values shown are standard/representative configurations. Confirm final certified figures (load rating, fire test) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.
Cleanroom Ceiling Grid Construction

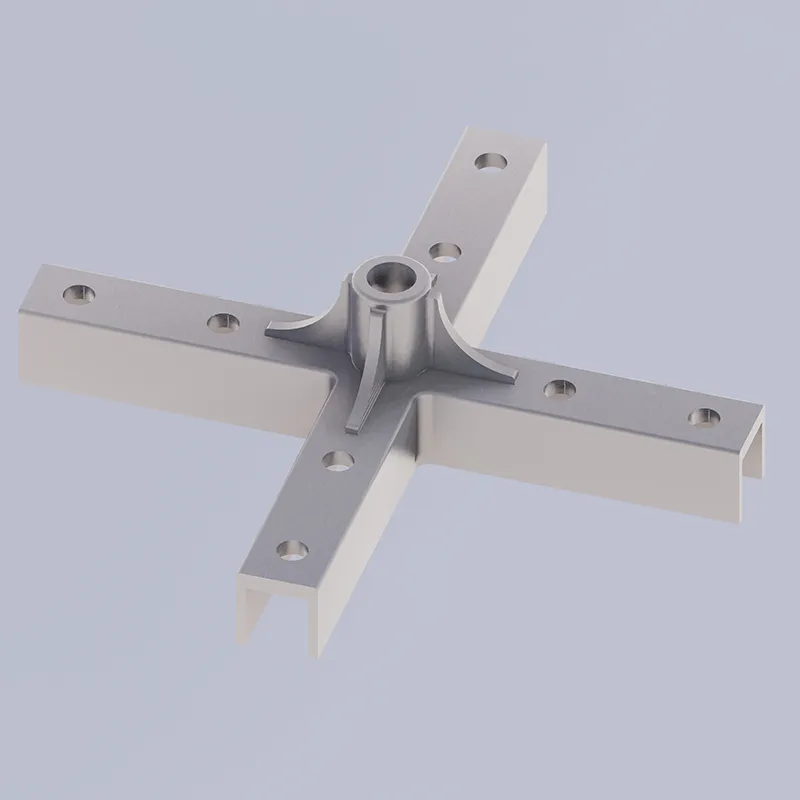

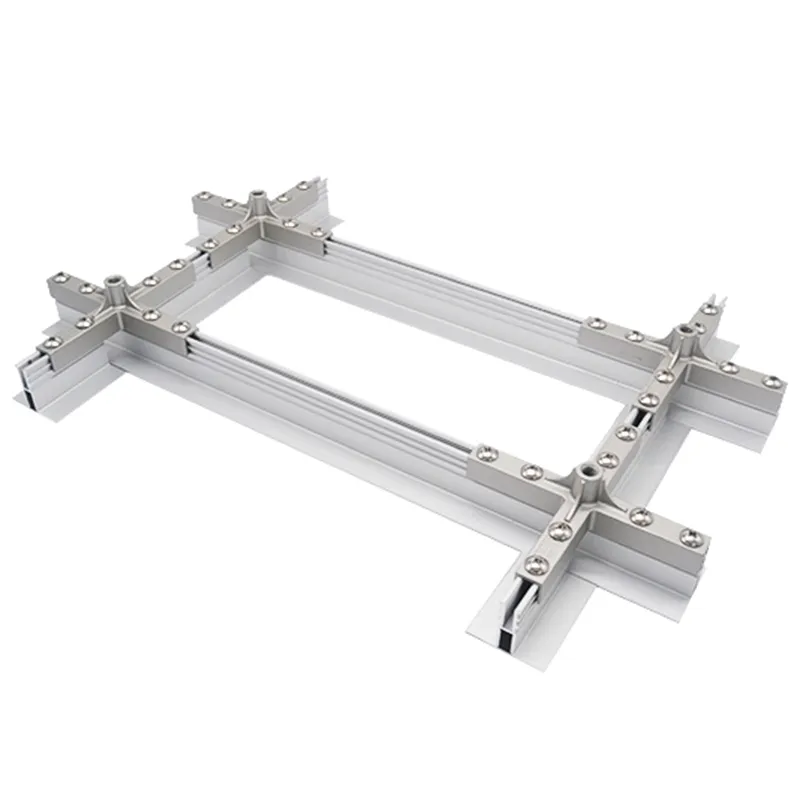

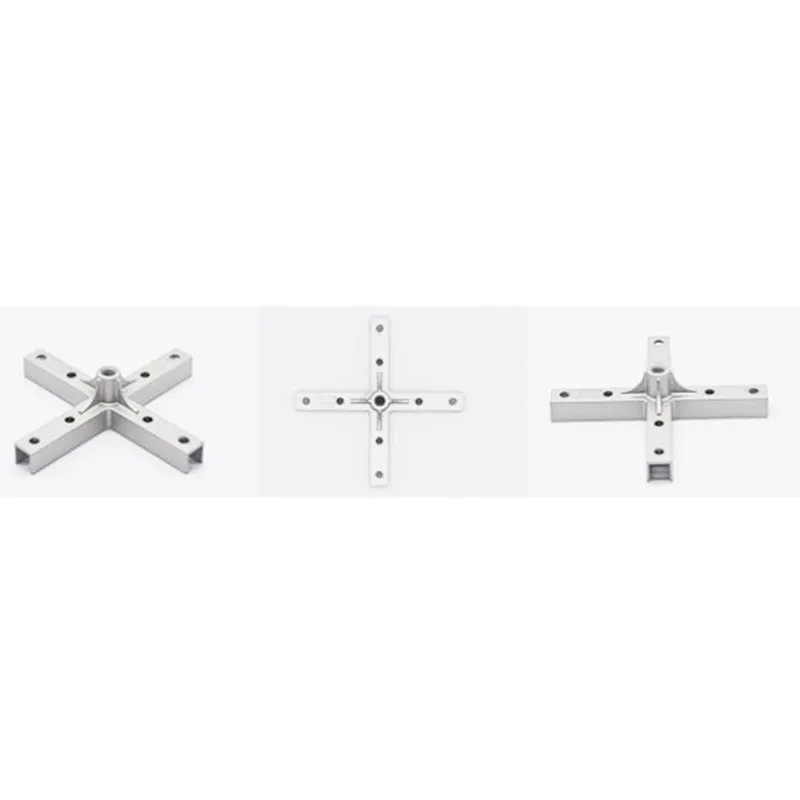

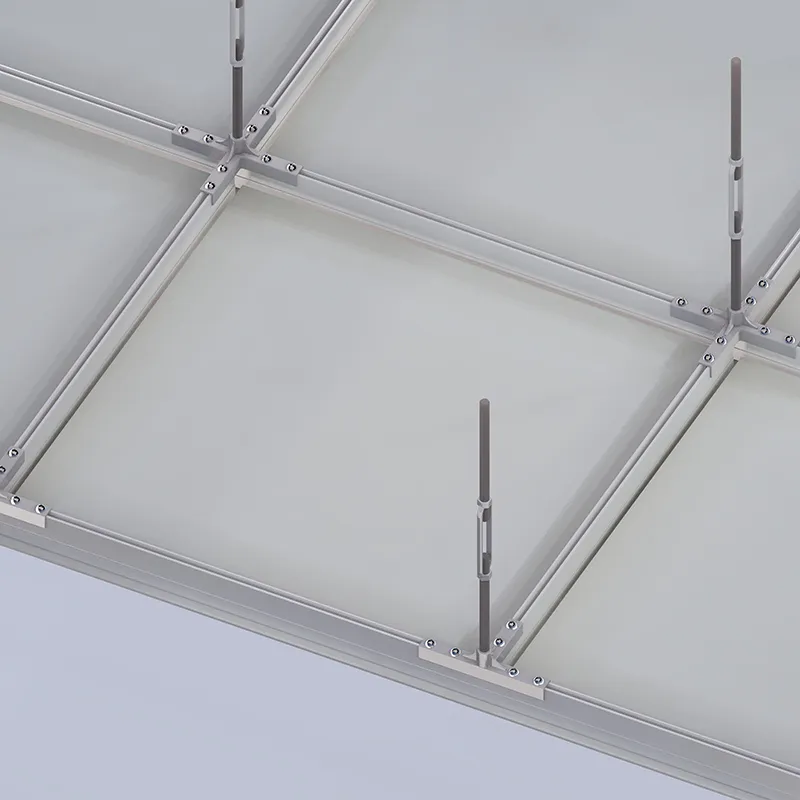

The threaded aluminum suspension is the engineering secret. A lightweight anodized 6063-T5 grid carries FFUs and panels with ≤ 0.3 mm/m flatness and ±15 mm vertical fine-tuning — its non-porous surface resists biofilm and its vibration resistance prevents micro-leakage at joints.
Why Choose Our Cleanroom Ceiling Grid
Precise flatness
≤ 0.3 mm/m flatness keeps panels and FFUs true for uniform airflow and clean sealing.
Heavy-duty load support
≥ 35 kg point load distributes weight from heavy terminal units without sagging.
Rapid install & service
Lightweight grid installs fast, with individual module replacement in about 12 minutes.
Corrosion-resistant
1,000-hour salt-spray resistance suits humid, tropical cleanroom environments.
Vibration-resistant
Vibration resistance prevents micro-leakage at joints in precision fab environments.
Field-proven
20+ years of field-tested performance data with ±15 mm commissioning adjustment.
Cleanroom Ceiling Grid Applications
Specified as cleanroom ceiling suspension grids across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
