Ceiling Grid System
Cleanroom false ceiling system

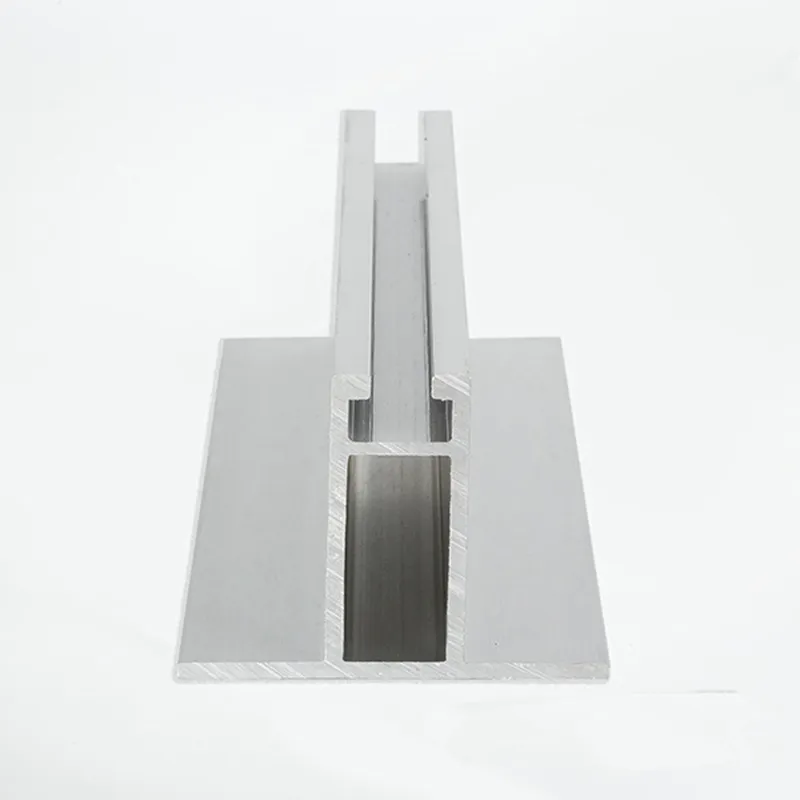

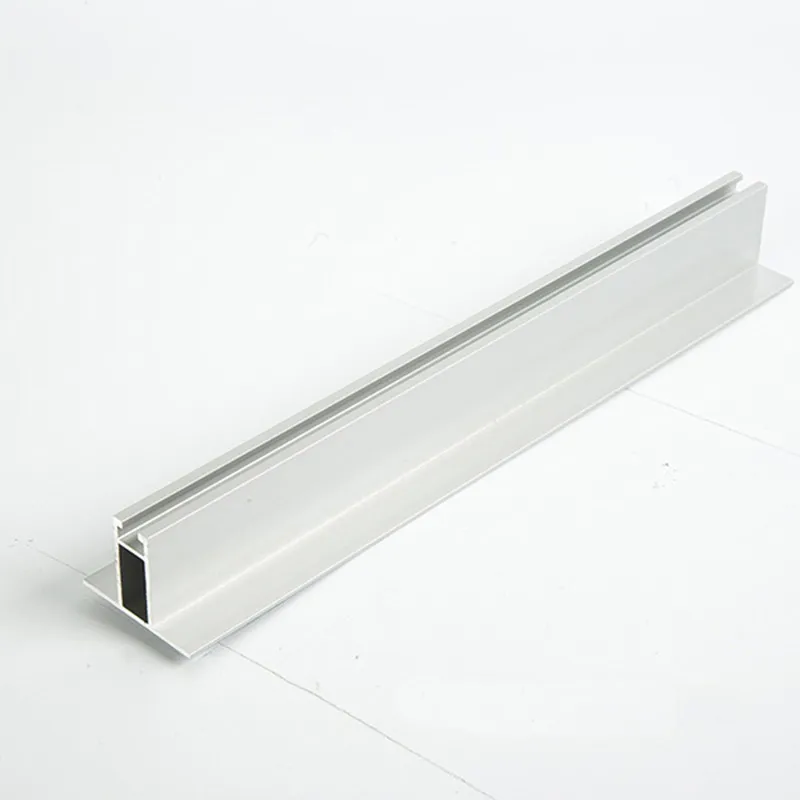

The T-bar ceiling system is suspended by an aluminum alloy beam shaped like the inverted letter "T", which is used on both sides are used to support the weight of the ceiling,, and the middle part of the structure is used for suspension.
Request a Free Quote
Clean Room False Ceiling System: Precision-Engineered Cleanroom Ceilings
The clean room false ceiling system is a precision-engineered suspended ceiling that carries modular cleanroom ceiling panels, FFUs, lighting and services on a sealed, walkable grid — delivering a flush, particle-tight ceiling plane for GMP and high-class environments.
It belongs to a complete ceiling family with our clean room FFU ceiling grid system and cleanroom HPL ceiling system, supplied with our modular cleanroom programme.
Cleanroom False Ceiling System Specifications
Standard configuration for the Wonclean cleanroom false ceiling system. Panel facing, thickness and grid are all customizable to project and cleanroom classification requirements.
| Panel material | Aluminum honeycomb core + 0.8 mm anodized Al (316L SS / coated steel options) |
|---|---|
| Panel thickness | 50 / 60 / 75 mm |
| Flatness tolerance | ≤ 0.15 mm per metre |
| Seam design | Continuous gasketed tongue-and-groove · silicone-free EPDM seal |
| Load capacity | up to 120 kg/m² static |
| Fire rating | Non-combustible (A1) |
| Cleaning resistance | > 2,000 cycles of 70% IPA, VHP and sodium hypochlorite |
| Acoustic attenuation | ≥ 32 dB Rw |
| Thermal stability | ΔT ≤ 1.2°C across panel |
| Airflow support | Uniform 0.3–0.45 m/s velocity |
| Integration | FFUs, lighting, sensors and ductwork (BIM-ready) |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, load rating) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

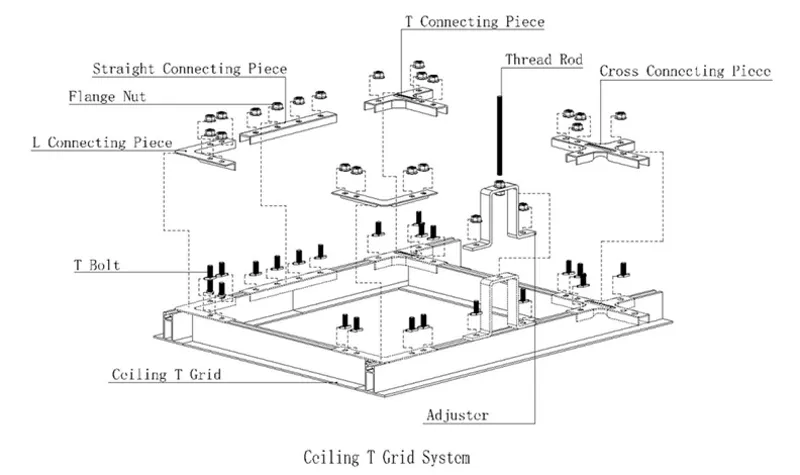

Cleanroom False Ceiling System Construction

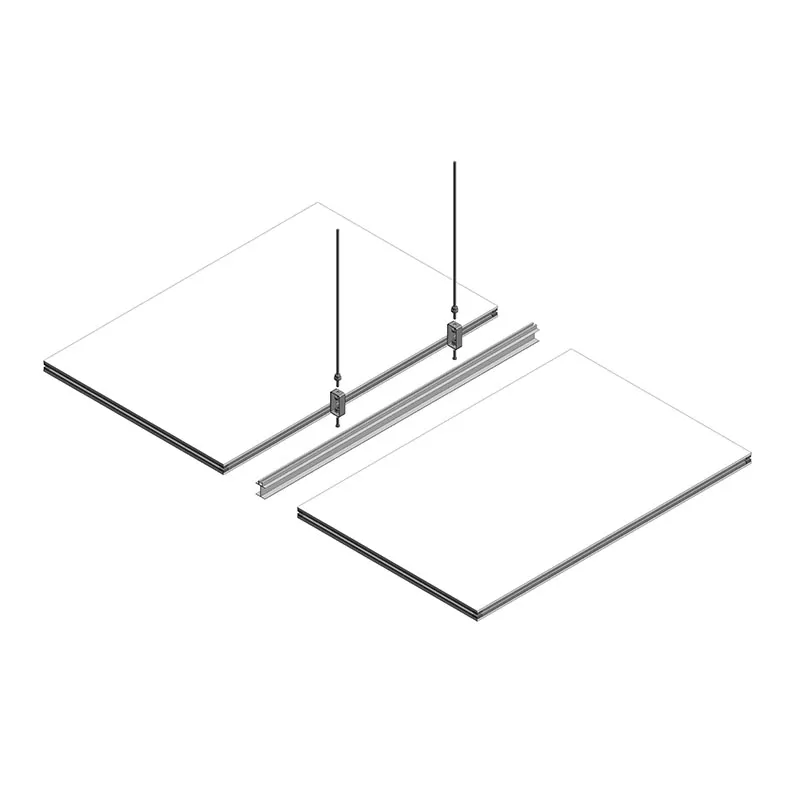

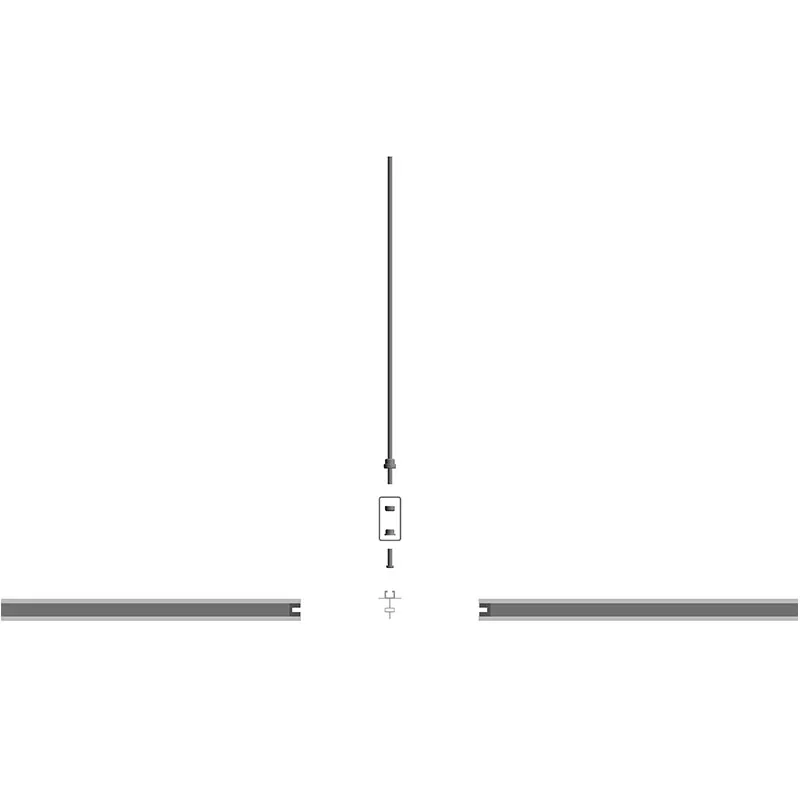

The inverted-T suspension grid is the engineering secret. Aluminum honeycomb panels drop into a vibration-damped T-bar framework with gasketed tongue-and-groove seams — giving ultra-flat tolerances, zero particle shedding and a service platform for FFUs, lighting and ductwork.
Why Choose Our Cleanroom False Ceiling System
Zero particle shedding
Gasketed seam design and non-shedding faces keep the ceiling within ISO particulate limits.
A1 non-combustible
Aluminum honeycomb core is non-combustible and low-outgassing for fire-critical cleanrooms.
Uniform airflow
Supports uniform 0.3–0.45 m/s laminar airflow with vibration-damped mounting rails.
Ultra-flat tolerances
≤ 0.15 mm/m flatness and ΔT ≤ 1.2°C prevent condensation bridging across panels.
Service integration
Seamless integration with FFUs, lighting, sensors and ductwork, with quick reconfiguration.
Durable cleaning
Withstands > 2,000 cycles of IPA, VHP and sodium hypochlorite without degradation.
Cleanroom False Ceiling System Applications
Specified as suspended cleanroom ceilings across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
