Ceiling Grid System

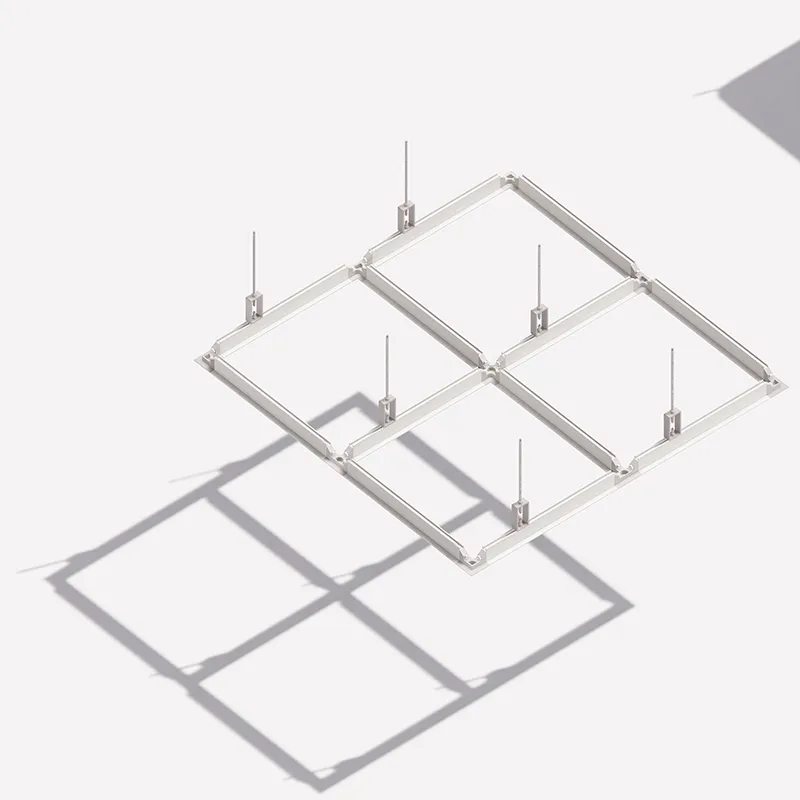

Clean room FFU ceiling grid system
FFU ceiling grid system is a kind of mesh ceiling bearing system, integrated ceiling system, is capable of integrating ceiling, Fan filter unit, lighting system, broadcast system, smoke sensing system and fire protection system organically.
Request a Free Quote
Clean Room FFU Ceiling Grid System: Integrated Filtration Ceiling Platform
The clean room FFU ceiling grid system is a mesh ceiling bearing system that organically integrates the ceiling, fan filter unit, lighting, broadcast, smoke-sensing and fire-protection systems on one FFU T grid platform — the fastest route to uniform ISO Class 5–7 laminar coverage.
It works with our fan filter unit (FFU), cleanroom false ceiling system and cleanroom HPL ceiling system, supplied within our Malaysia prefabricated cleanrooms programme.
FFU Ceiling Grid System Specifications
Standard configuration for the Wonclean clean room FFU ceiling grid system. Material, module size and load capacity are all customizable to project and cleanroom classification requirements.
| Material | Anodized 6063-T5 aluminum (15 µm min) (electropolished 316L SS option) |
|---|---|
| Grid module size | 1200×600 mm (1200×1200 / 900×900 / custom) |
| Depth & load | 75 mm, 15 kg/unit (100 mm reinforced, > 20 kg heavy-duty) |
| Airflow uniformity | ≥ 90% at 0.3 m below ceiling (≥ 95% with CFD) |
| Fire rating | ASTM E84 Class A (EN 13501-1 B-s1,d0 option) |
| Panel compatibility | PVC-coated steel, stainless, FRP, LED cutouts, mineral wool backing |
| Alignment | Laser-levelled grid, torque-controlled fastening |
| Integration | FFU, lighting, broadcast, smoke-sensing, fire-protection, VAV |
| Monitoring | Pressure decay monitoring ports available |
| Commissioning | ISO 14644-3 compliant documentation |
Values shown are standard/representative configurations. Confirm final certified figures (airflow validation, load rating) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

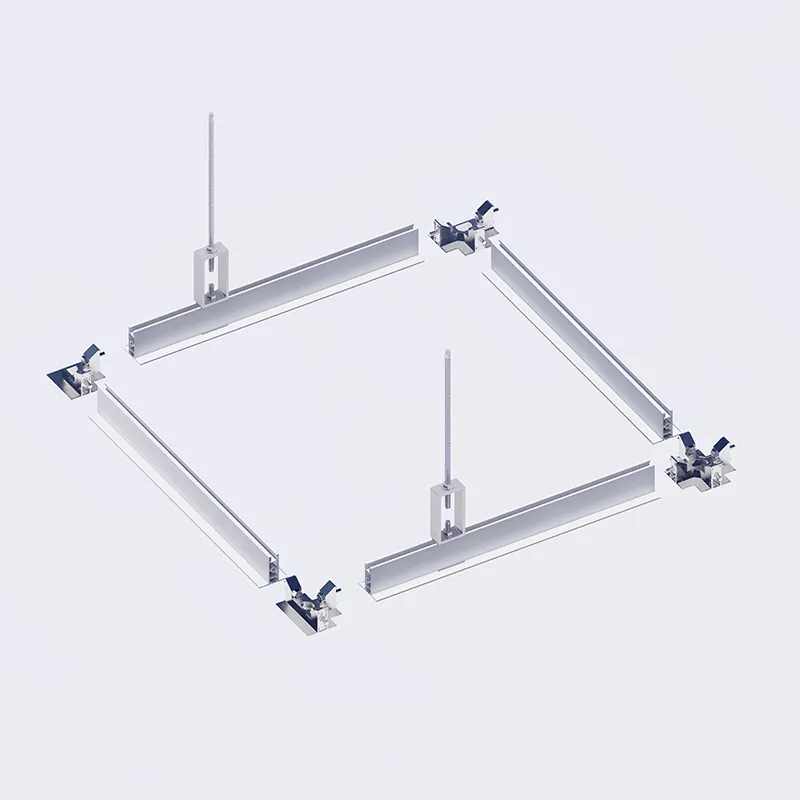

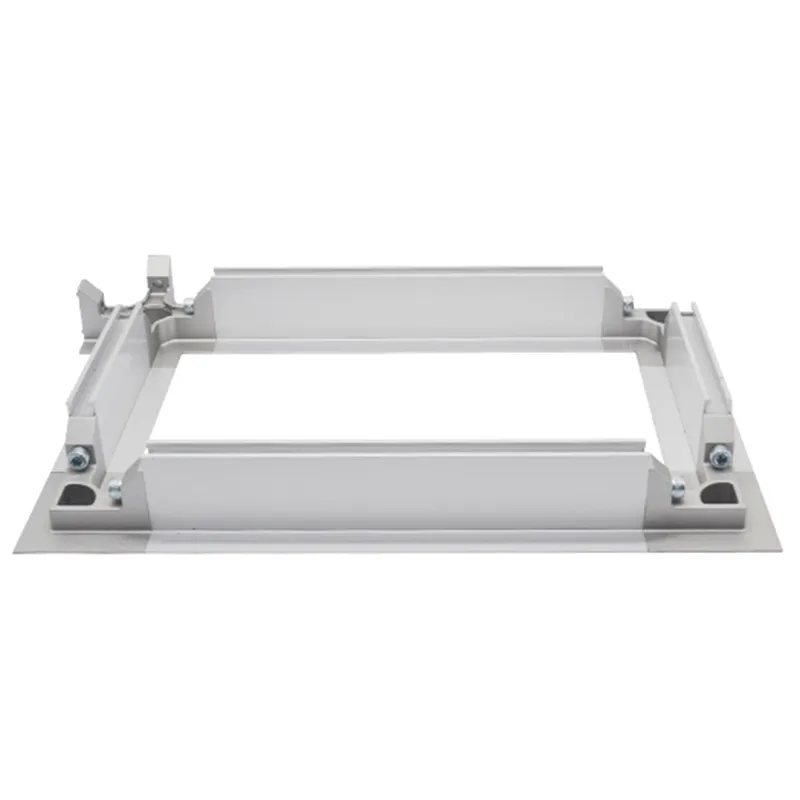

FFU Ceiling Grid System Construction

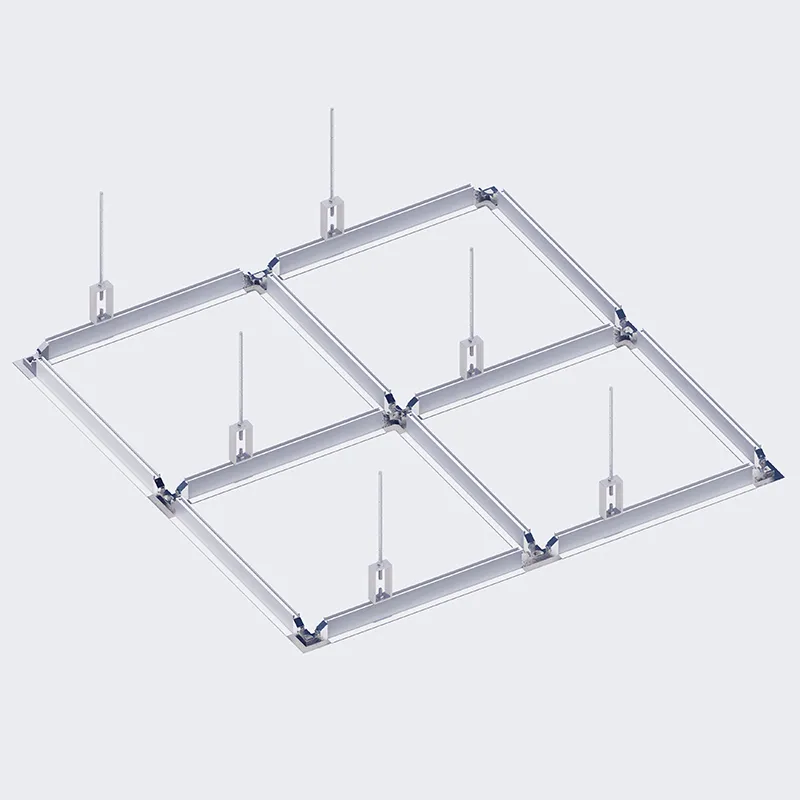

The standardized mesh bearing framework is the engineering secret. A laser-levelled, torque-fastened aluminum grid carries FFUs and panels with ≤ 0.3 mm/m flatness — and organically integrates lighting, broadcast, smoke and fire systems into one reconfigurable ceiling platform.
Why Choose Our FFU Ceiling Grid System
One integrated platform
Combines FFUs, lighting, smoke, fire and broadcast systems into a single reconfigurable ceiling.
Precise flatness
Laser-levelled grid holds ≤ 0.3 mm/m flatness for uniform airflow and clean sealing.
Uniform airflow
≥ 90% airflow uniformity (95% with CFD) for stable laminar and turbulent layouts.
Non-shedding & sealed
Integrated gasket sealing and non-shedding surfaces protect particulate control.
Scalable & reconfigurable
Standardized modules scale airflow coverage and reconfigure as layouts change.
VAV-ready
Variable air volume integration and pressure decay monitoring ports for smart control.
FFU Ceiling Grid System Applications
Specified as integrated FFU ceiling grids across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
