Cleanroom injection panel
The cleanroom injection panel is a critical component for precise injection control within a cleanroom environment.
Request a Free Quote

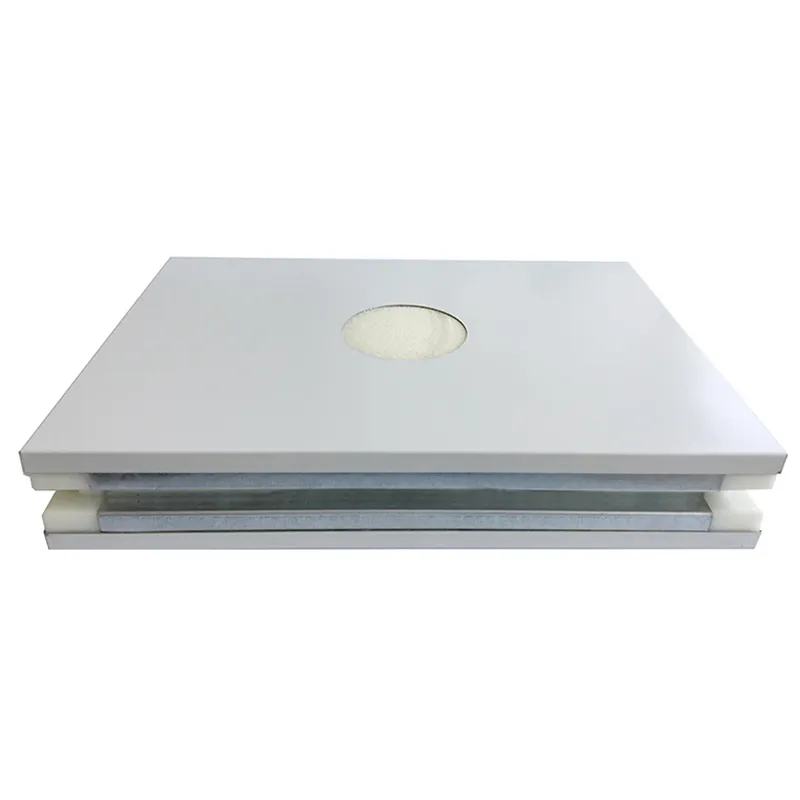

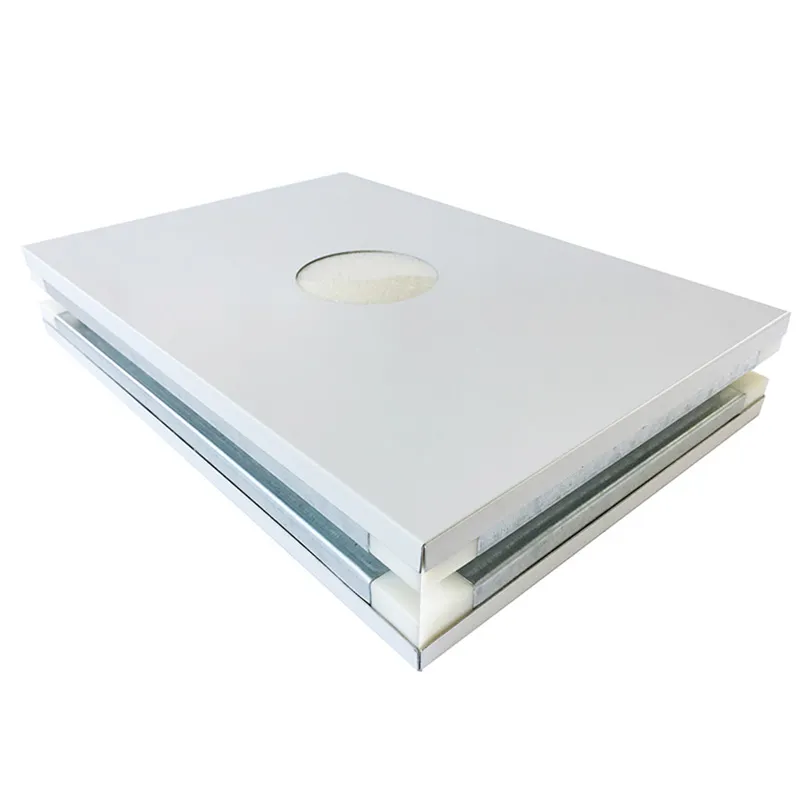

Clean Room Injection Panel: Precision Service Penetration Panel
The clean room injection panel is a critical component for precise service-penetration and injection control within a cleanroom envelope, sealing pipework, cabling and process lines through the wall without compromising air-tightness. The clean room injection sandwich panel suits semiconductor manufacturing and aseptic pharmaceutical suites.
It integrates with our clean room partition system, clean room interlock system and clean room laminar flow equipment, supplied within our Malaysia prefabricated cleanrooms programme.
Clean Room Injection Panel Specifications
Standard configuration for the Wonclean clean room injection panel. Thickness, core, facing and fire rating are all customizable to project and cleanroom classification requirements.
| Panel type | Injected polyurethane composite sandwich panel |
|---|---|
| Panel thickness | 50 / 75 / 100 mm (120 mm ultra-low U-value option) |
| Core material | High-density injected rigid PU, 42 ± 2 kg/m³ (phenolic A2 option) |
| Facing material | Anodized aluminum 1.0 mm / SS304 0.8 mm (SS316 EP option) |
| Thermal conductivity (λ) | ≈ 0.022 W/m·K (50 mm) · ≤ 0.019 with VIP |
| Particle shedding | ≤ 10 particles ≥ 0.5 µm/cm²/min (≤ 3 option) |
| Outgassing | < 5 µg/g total volatile organics · USP <87>/<88> |
| Surface resistivity | 10⁴–10⁶ Ω/sq (ESD-safe) |
| Surface finish | Smooth, non-porous · antimicrobial silver-ion option |
| Fire rating | ASTM E84 Class A |

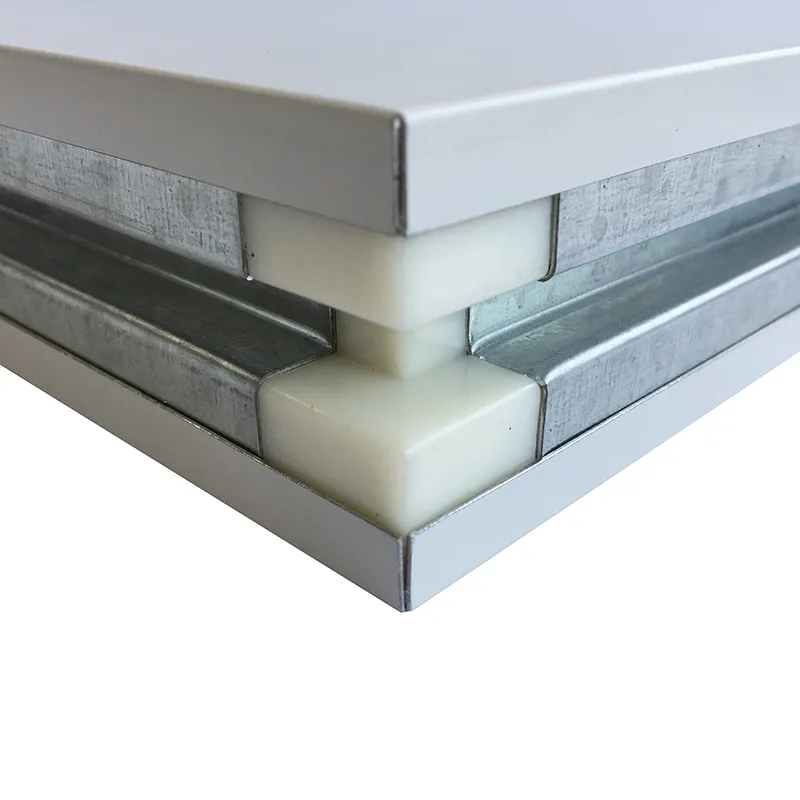

| Edge / joint | Interlocking tongue-and-groove · embedded T-slot channels |
| Service life | 15+ years (design) |
| Cleanliness grade | ISO 14644-1 Class 3–8 ready |
Values shown are standard/representative configurations. Confirm final certified figures (fire test report, outgassing, U-value) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

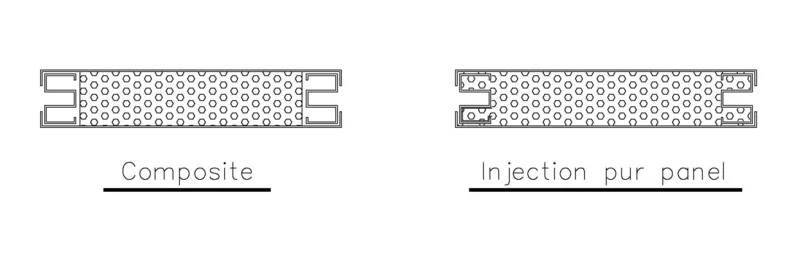

Clean Room Injection Panel Construction

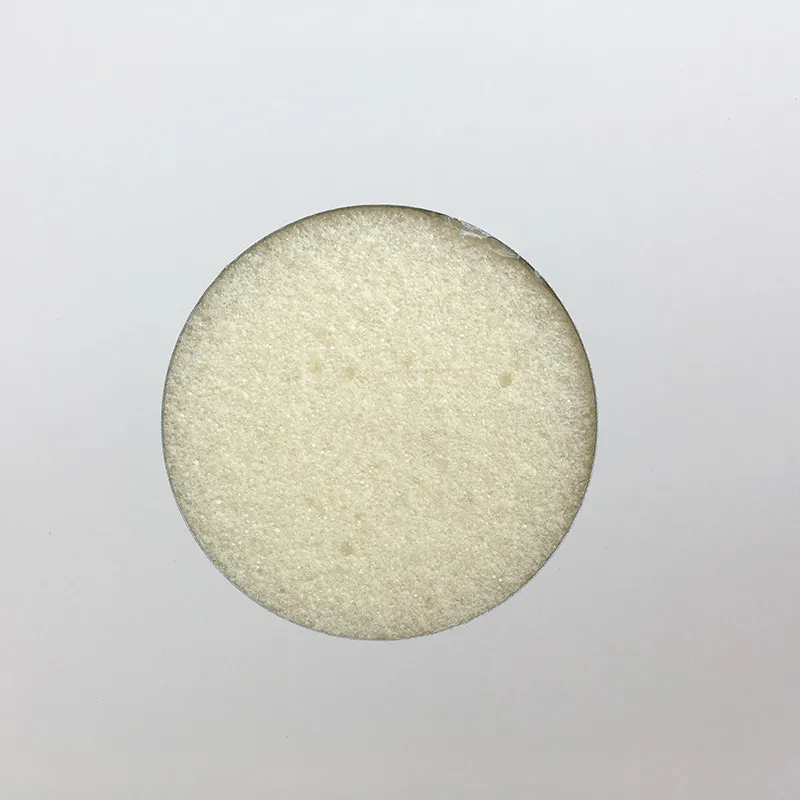

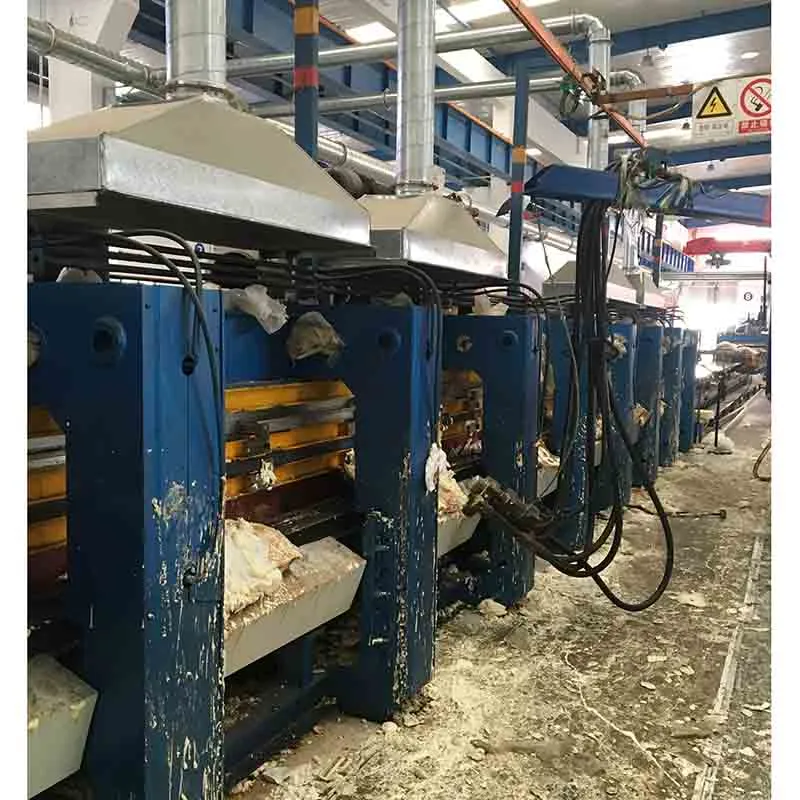

The injection process is the engineering secret. Polyurethane is injected under controlled pressure into a pre-assembled aluminum frame, curing into one continuous seamless core with zero voids and consistent density — eliminating the thermal bridging and particle traps found in glued laminate panels.
Why Choose Our Clean Room Injection Panels
Seamless zero-void core
Factory-calibrated injection eliminates voids, gaps and thermal bridging for a stable, hygienic envelope.
Consistent foam density
Uniform 42±2 kg/m³ density gives dimensional stability across 18–30°C temperature swings.
Non-shedding & low-outgassing
USP <87>/<88>-compliant surfaces resist biofilm adhesion and protect contamination-sensitive processes.
ESD-safe surface
Surface resistivity 10⁴–10⁶ Ω/sq protects sensitive electronics and semiconductor processes.
Fast interlocking install
Tongue-and-groove edges and embedded T-slot channels speed assembly and integrate door frames and raceways.
Traceable & durable
Batch testing documentation, full material traceability and a 15+ year service-life design.
Clean Room Injection Panel Applications
Specified as cleanroom wall panels, ceiling panels and partition systems across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
