Cleanroom partition system

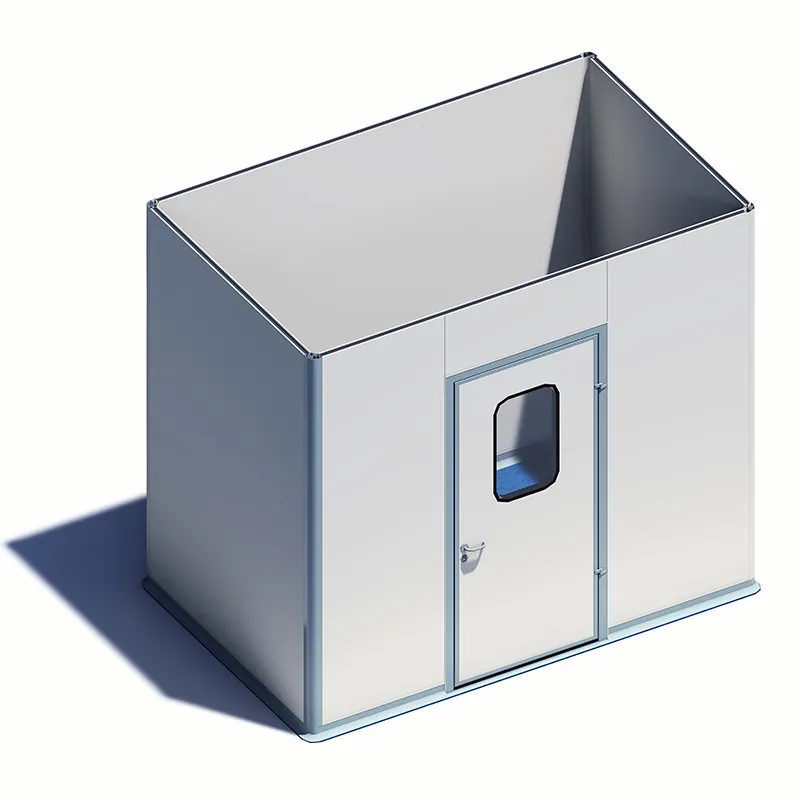

The right angle corner system is a partition wall and floor, partition wall and partition wall, the angle between the partition wall and the ceiling is 90 ° compartment system connection ways.
Request a Free Quote
Clean Room Partition System: Right-Angle HPL Wall System
The clean room partition system uses a right-angle corner method to join wall-to-floor, wall-to-wall and wall-to-ceiling at a sealed 90° — eliminating crevices that harbour particulates. As experienced hpl panels manufacturers and a Malaysia cleanroom manufacturer, we deliver both fixed and demountable partition system configurations.
It shares panel specifications with our HPL sandwich panel and clean room demountable partition wall, supplied within our modular cleanroom programme.
Cleanroom Partition System Specifications
Standard configuration for the Wonclean cleanroom partition system. Core, cladding and frame are all customizable to project and cleanroom classification requirements.
| Panel core | Mineral wool (90 mm) or PU foam (75 mm), ≥ 120 kg/m³ (calcium silicate option) |
|---|---|
| Cladding | 0.8 mm pre-lacquered steel (RAL 9016) (HPL 13 mm / SS316L / antimicrobial PVC options) |
| Joint system | Continuous silicone gasket + aluminum pressure cap (EPDM / welded options) |
| Structural frame | Anodized aluminum 6063-T5, demountable (reinforced steel for > 150 kg FFU) |

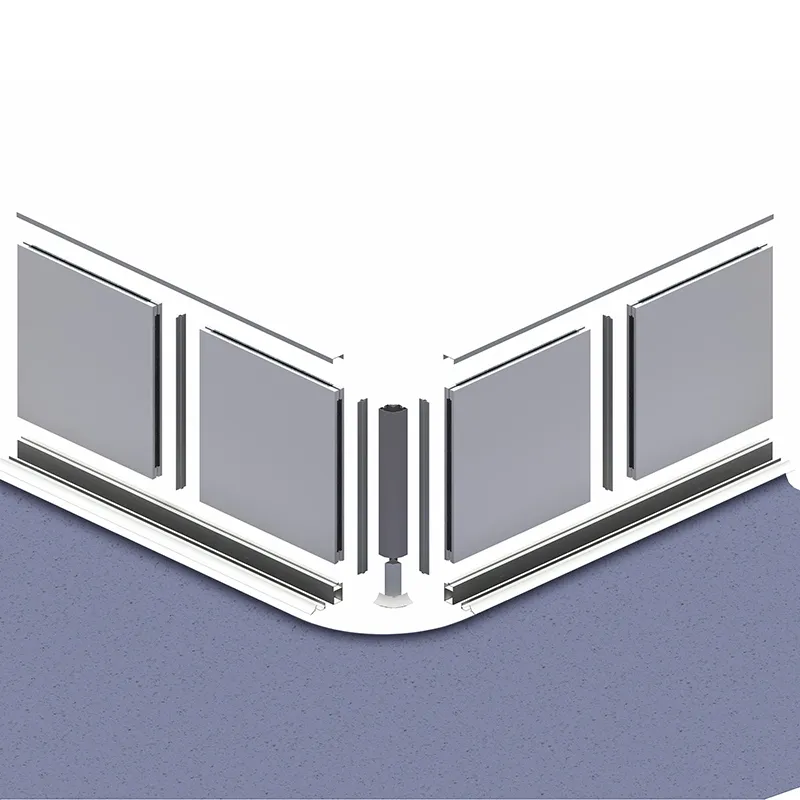

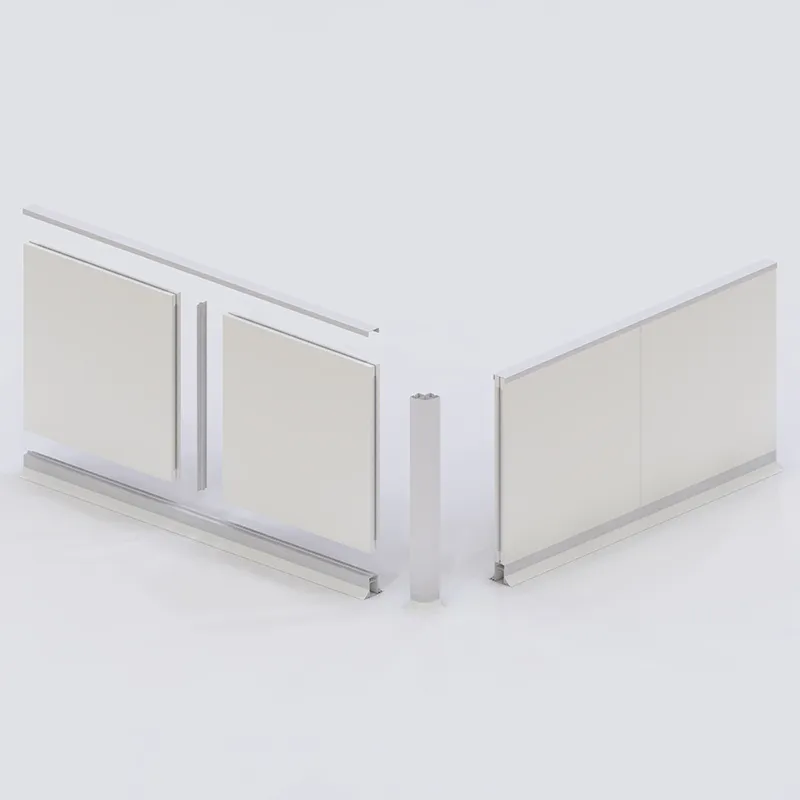

| Corner system | 90° right-angle wall/floor/ceiling connections |
| Ceiling integration | Standard grid compatible, recessed mounting, HEPA hatches, cable channels |
| Fire rating | ASTM E84 Class A · BS 476 |
| Compliance | ISO 14644-1 Class 3–8 (USP <797>/<800>, EU GMP Annex 1 options) |
| Cleanliness grade | ISO 14644-1 Class 3–8 ready |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, leak test) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.
Cleanroom Partition System Construction

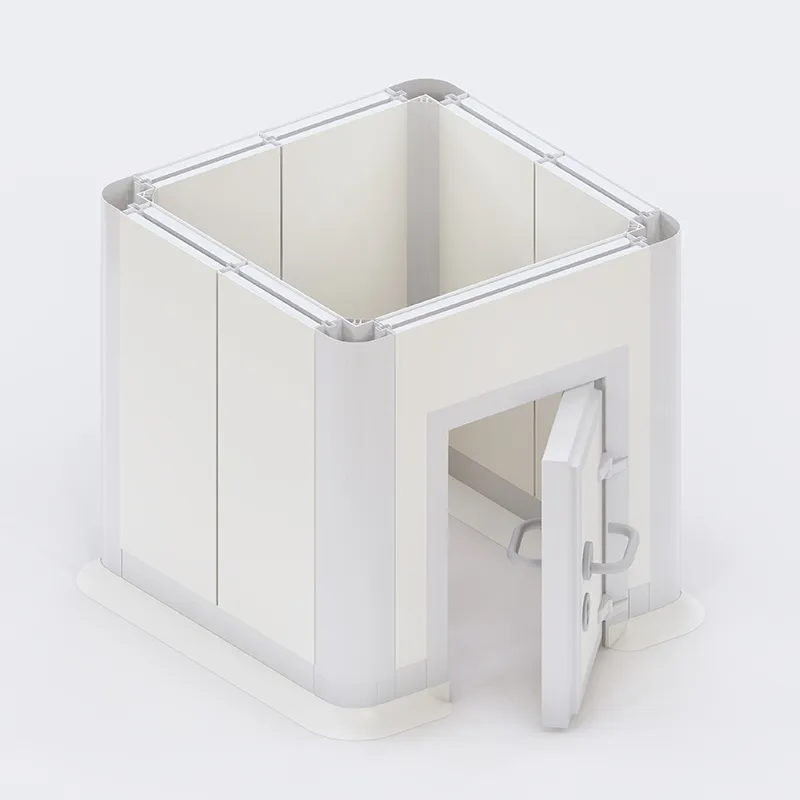

The 100% demountable framework is the engineering secret. Non-combustible mineral wool or PU cores bond to anodized aluminum frames with concealed pressure-cap joinery — enabling panels to be reused and reconfigured with zero downtime, in a choice of cleanroom-grade cladding finishes.
Why Choose Our Cleanroom Partition System
Zero-downtime reconfiguration
100% demountable design enables rapid layout changes and panel reuse without facility shutdown.
Multi-cladding flexibility
HPL, stainless 316L, epoxy-coated steel or antimicrobial PVC address particulate and chemical needs.
Clean 90° joinery
Right-angle corner system with concealed pressure caps keeps junctions flush and gap-free.
Heavy FFU support
Reinforced steel subframe option carries FFU loads over 150 kg for service-dense ceilings.
Multi-standard compliance
ISO 14644-1, ASTM E84 Class A, BS 476, USP <797>/<800> and EU GMP Annex 1.
Fully documented
Full BIM coordination and documentation packages for design, validation and audit.

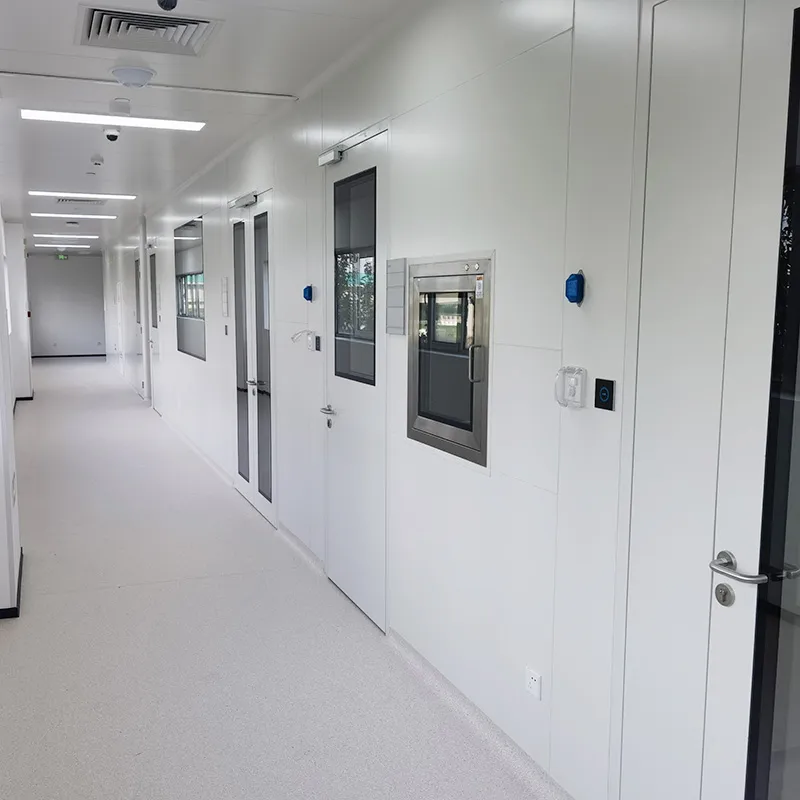

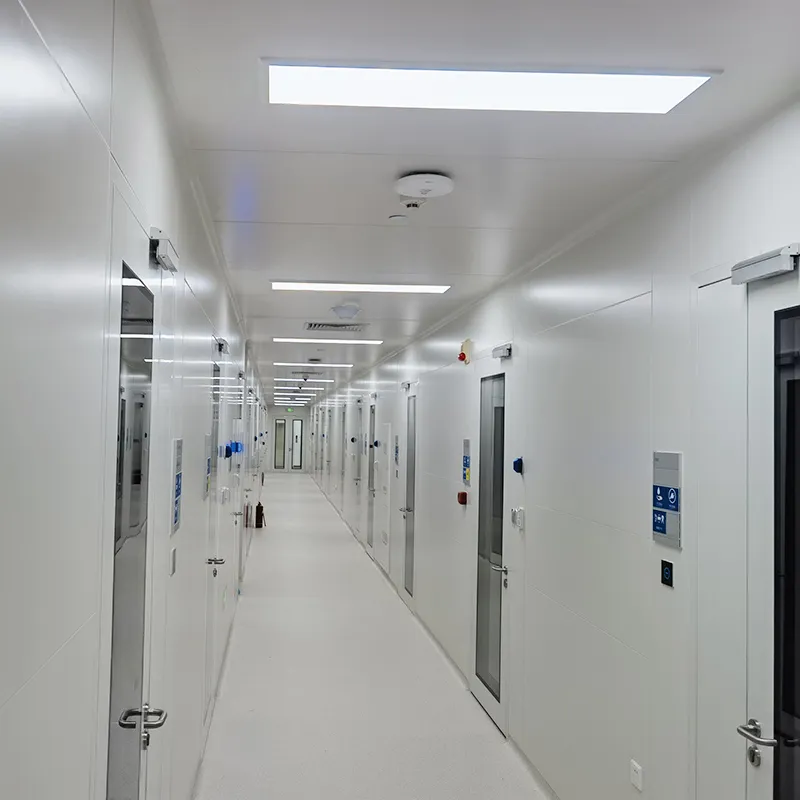

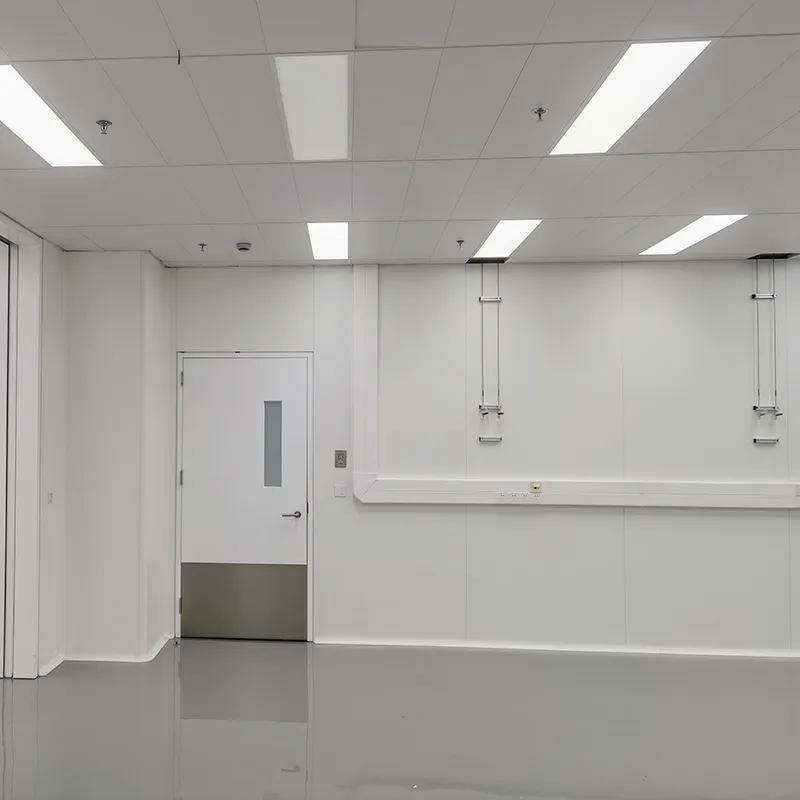

Cleanroom Partition System Applications
Specified as modular cleanroom partition walls across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
