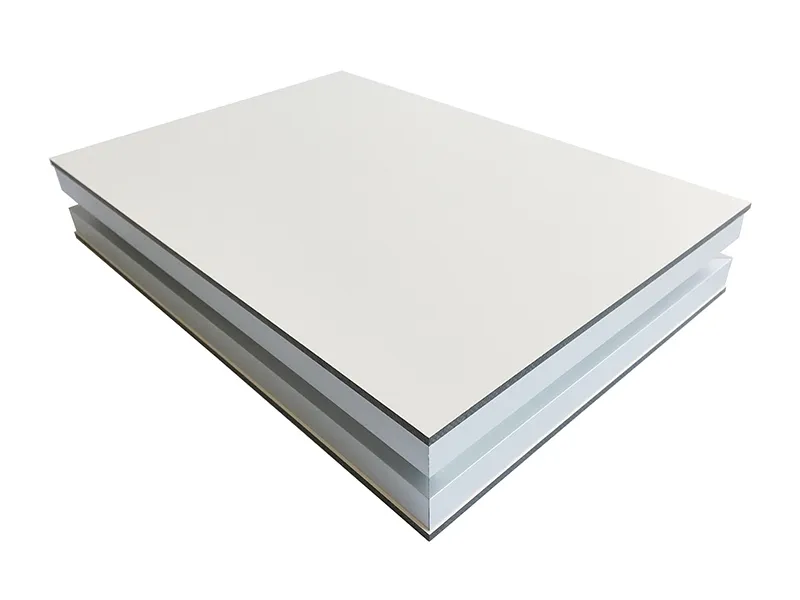

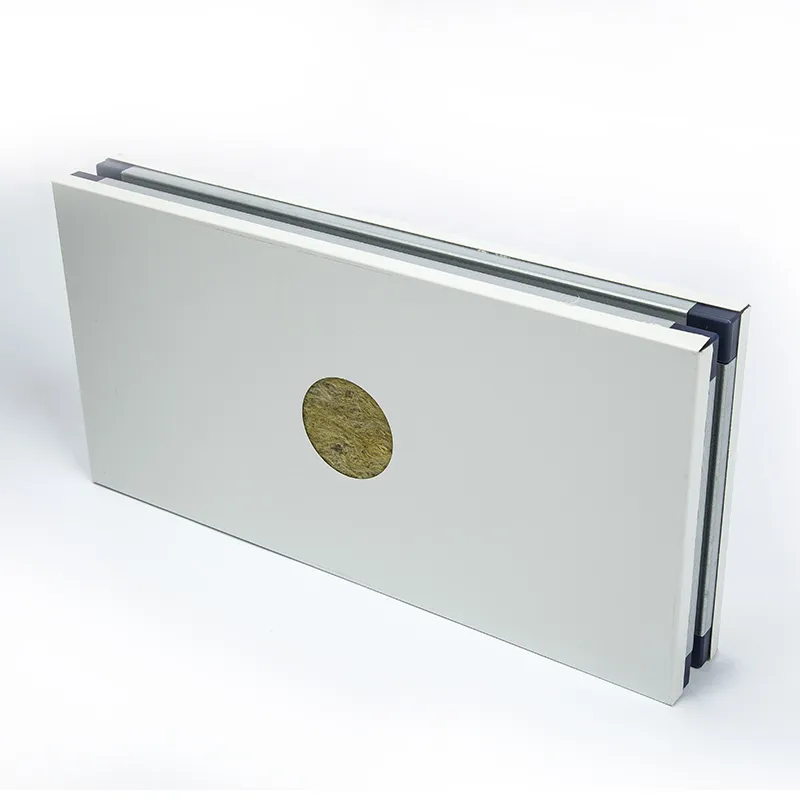

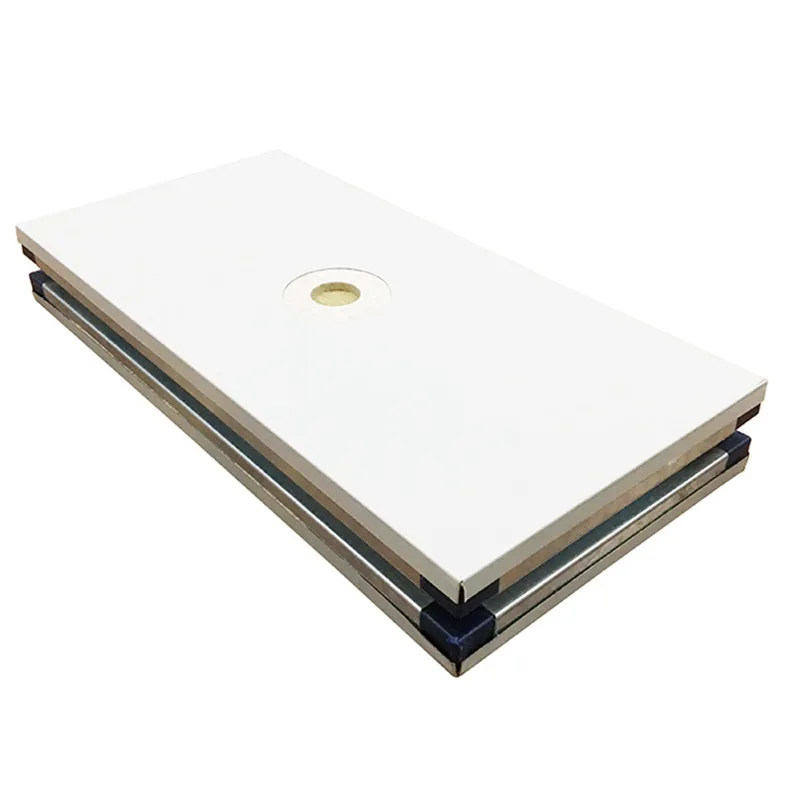

Clean Room Sandwich Panel: Flame-Retardant, Soundproof Cleanroom Walls
The clean room sandwich panel is a core product in cleanroom engineering — flame-retardant, soundproof and environmentally friendly. Built from two metal facings bonded to a rigid core, the cleanroom panel delivers high flatness, structural rigidity and a non-shedding, easy-clean surface for ISO-classified environments.
It is offered alongside our HPL sandwich panel and magnesium oxide rock wool cleanroom panel, all delivered within our modular cleanroom programme.
Clean Room Sandwich Panel Specifications
Standard configuration for the Wonclean clean room sandwich panel. Core type, facing, thickness and fire rating are all customizable to project and cleanroom classification requirements.
| Panel type | HPL-faced mineral wool / PIR sandwich panel |
|---|---|
| Core material | High-density mineral wool ≥ 120 kg/m³ or PIR (λ ≤ 0.022 W/m·K) |
| Facing sheets | HPL 0.8 mm, phenolic resin-bonded, Class A surface |
| Fire rating | EN 13501-1 B-s1,d0 · non-dripping, low smoke |
| Dimensional tolerance | ± 0.3 mm over 3 m · flatness ≤ 1.0 mm/m² |
| Joint system | Tongue-and-groove + EPDM gasket (10⁵-cycle tested) |
| Surface cleanability | ISO 14644-10 wipe-test compliant |
| Water absorption | < 0.1% after 72 h immersion |
| Anti-static option | ESD variants 10⁶–10⁹ Ω/sq |
| Dimensional stability | Stable across 15–35°C temperature swings |
| Cleanliness grade | ISO 14644-1 Class 5–8 ready |
Values shown are standard/representative configurations. Confirm final certified figures (fire test report, load rating, cleanability) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

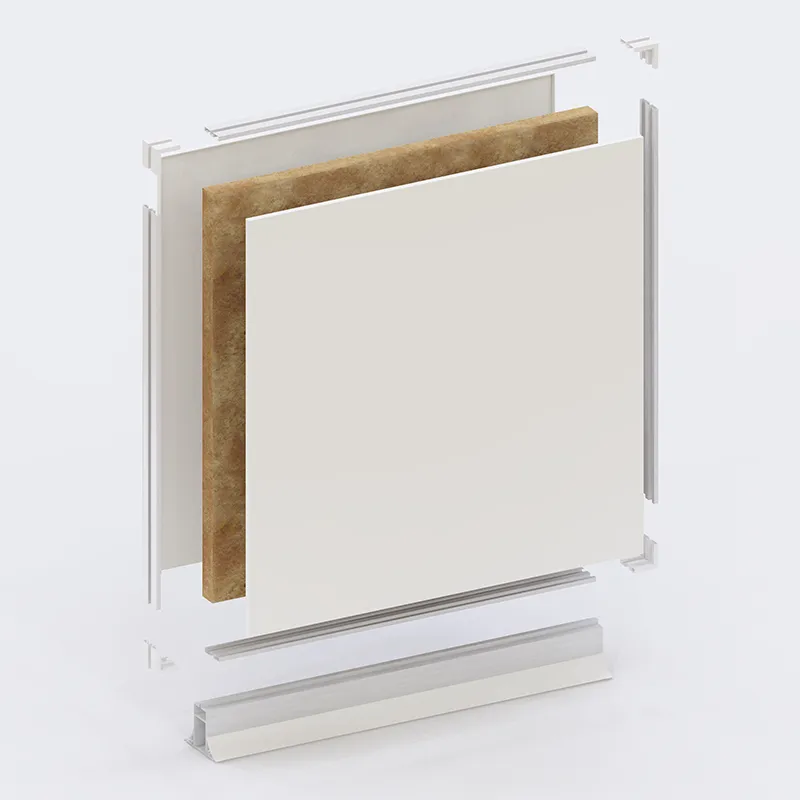

Clean Room Sandwich Panel Construction
The dual-layer build pairs a hard HPL face with a high-density core, giving the panel its flame-retardant, soundproof and non-shedding character. A concealed EPDM gasket joint seals every seam — eliminating the gaps and micro-vibrations that compromise classified environments.
Why Choose Our Clean Room Sandwich Panels
Flame-retardant & safe
B-s1,d0 non-dripping, low-smoke build provides a safe fire barrier for 24/7 critical operations.
Soundproof & stable
High-density core damps noise and eliminates micro-vibrations during HVAC cycling for precision work.
Non-shedding & zero-outgassing
Sealed HPL surfaces prevent particle generation and resist biofilm adhesion and chemical sterilization.
Moisture-resistant
Water absorption < 0.1% after 72 h immersion keeps panels dimensionally stable in humid environments.
Auditable performance
ISO 7-controlled manufacturing with full batch traceability delivers repeatable, auditable quality.
Durable sealed joints
EPDM gasket joints tested to 10⁵ cycles maintain a tight, gap-free seal over the panel's service life.
Clean Room Sandwich Panel Applications
Specified as cleanroom wall panels, ceiling panels and partition systems across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
