Clean room single glass window
Clean room single glass window the glass used is tempered glass/reinforced glass. Tempered glass is actually a type of prestressed glass. In order to increase the strength of the glass, chemical or physical methods are usually used to form compressive stress on the surface of the glass.
Request a Free Quote

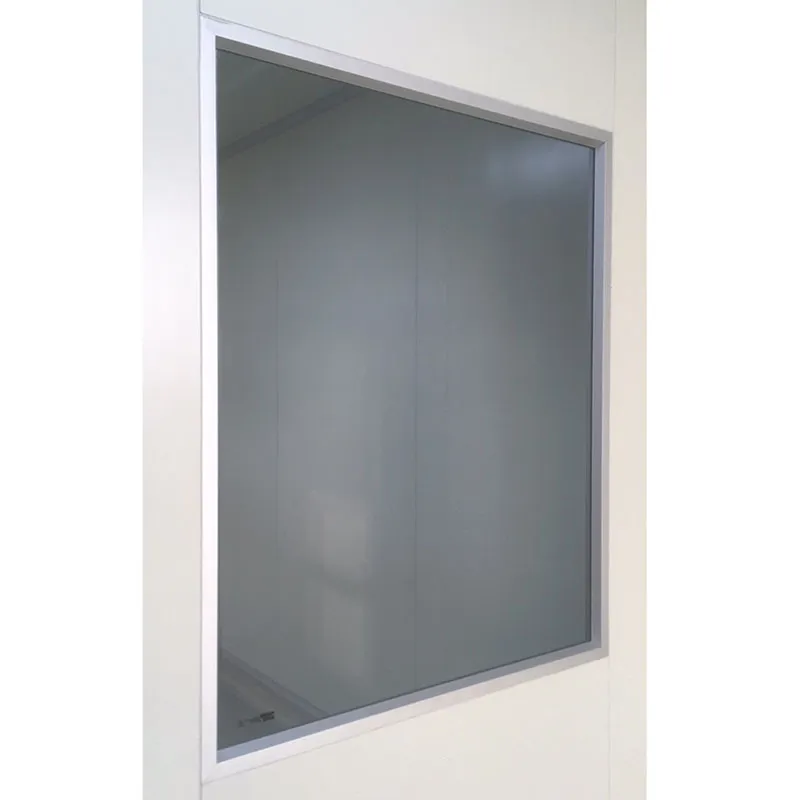

Clean Room Single Glass Window: Tempered Flush Vision Panel
The clean room single glass window uses tempered / reinforced glass, with chemical or physical strengthening forming compressive surface stress for higher impact resistance and safe failure. Set flush in a gasketed aluminium frame, it provides a hygienic, easy-clean vision panel for partitions and doors.
It coordinates with our clean room double glass window and clean room HPL door ranges, supplied within our modular cleanroom programme.
Cleanroom Single Glass Window Specifications
Standard configuration for the Wonclean cleanroom single glass window. Glass, frame and size are all customizable to project and cleanroom classification requirements.
| Frame material | Anodized aluminum 6063-T5 or stainless steel 316L |
|---|---|
| Glass type | Tempered laminated float glass 6–12 mm (low-iron coating option) |
| Sealing system | Double-gasket silicone + polyurethane perimeter bond |
| Fire rating | Up to 120-min integrity (EI120) per MS 1073:2021 |
| Standard dimensions | W300–1200 × H300–1800 mm (custom to W2000×H2400 mm) |
| Pressure differential | ≥ 10 Pa; leak rate < 0.05% at 100 Pa |
| ESD compliance | Surface resistivity ≤ 1×10⁹ Ω/sq (ESD variant) |
| Chemical resistance | IPA, H₂O₂ vapor, sodium hypochlorite (≤ 5%) |
| Installation | Pre-aligned mounting flanges, ~40% less install labour |
| Cleanliness grade | ISO 14644-1 Class 3–8 (containment up to Class 3) |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, leak rate) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

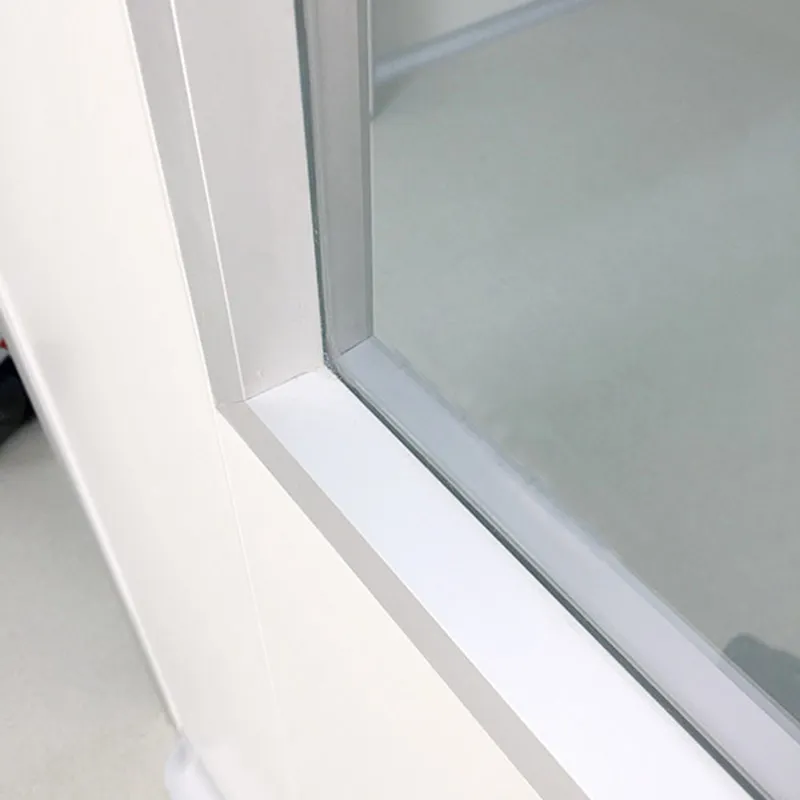

Cleanroom Single Glass Window Construction
Pre-aligned mounting flanges are the engineering secret. A tempered laminated glass pane in a flush aluminum or 316L frame with a double-gasket silicone + polyurethane seal installs ~40% faster — validated for repeated disinfection cycles and seamless modular integration.
Why Choose Our Cleanroom Single Glass Window

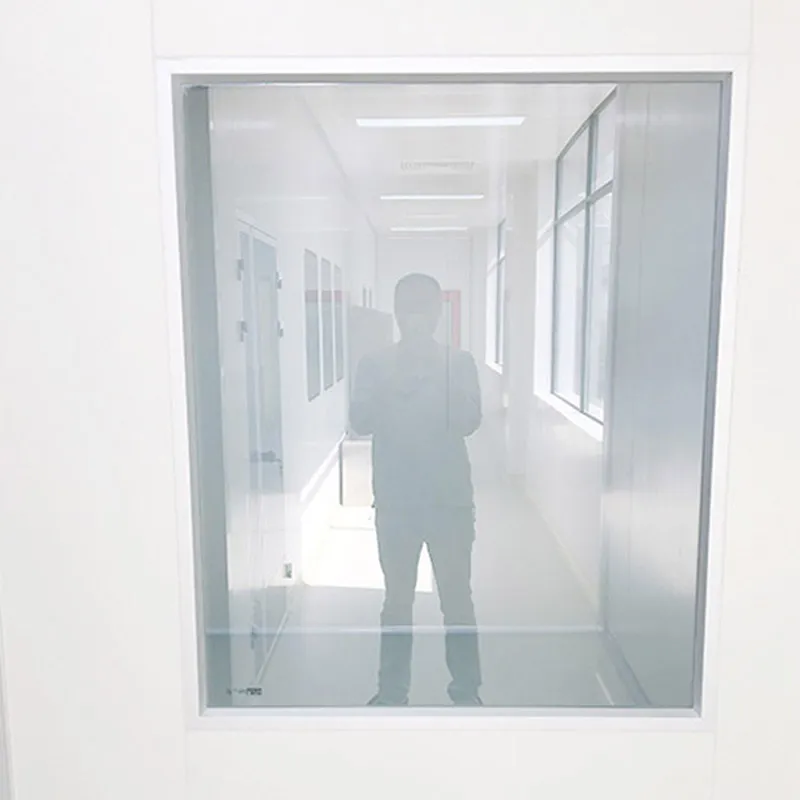

Optical clarity
Tempered (low-iron option) glass gives clear, distortion-free visibility between zones.
Tight sealing
Double-gasket seal keeps leak rate < 0.05% at 100 Pa for stable pressure cascades.
Fire-rated option
Up to EI120 fire integrity (MS 1073:2021) for fire-compartmented cleanrooms.
ESD-grade option
ESD variant (≤ 10⁹ Ω/sq) protects sensitive electronics and metrology zones.
Fast installation
Pre-aligned mounting flanges reduce installation labour by around 40%.
Disinfection-validated
Validated for repeated disinfection cycles with IPA, H₂O₂ and hypochlorite.

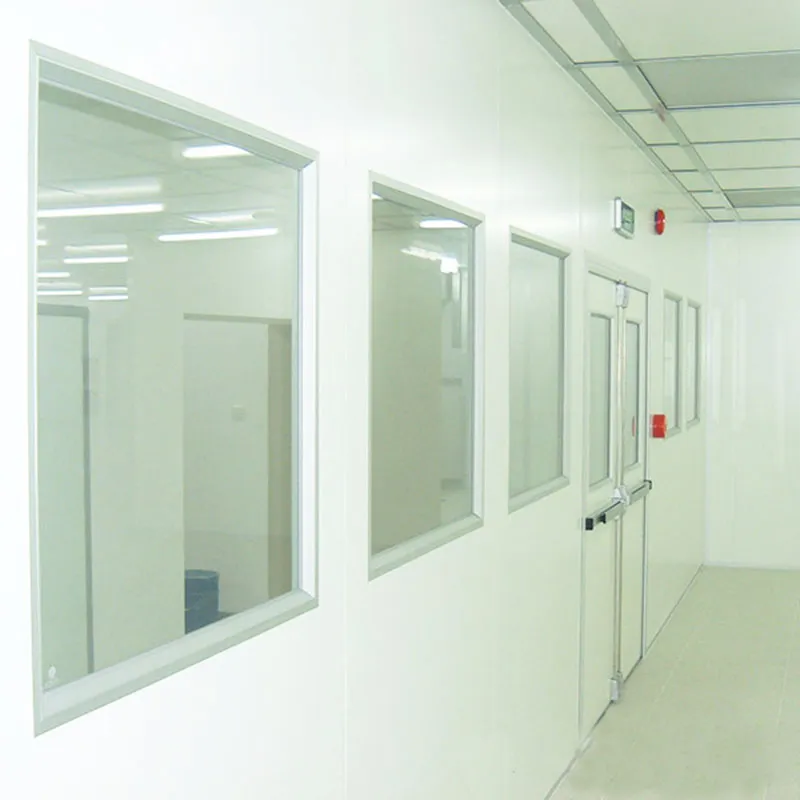

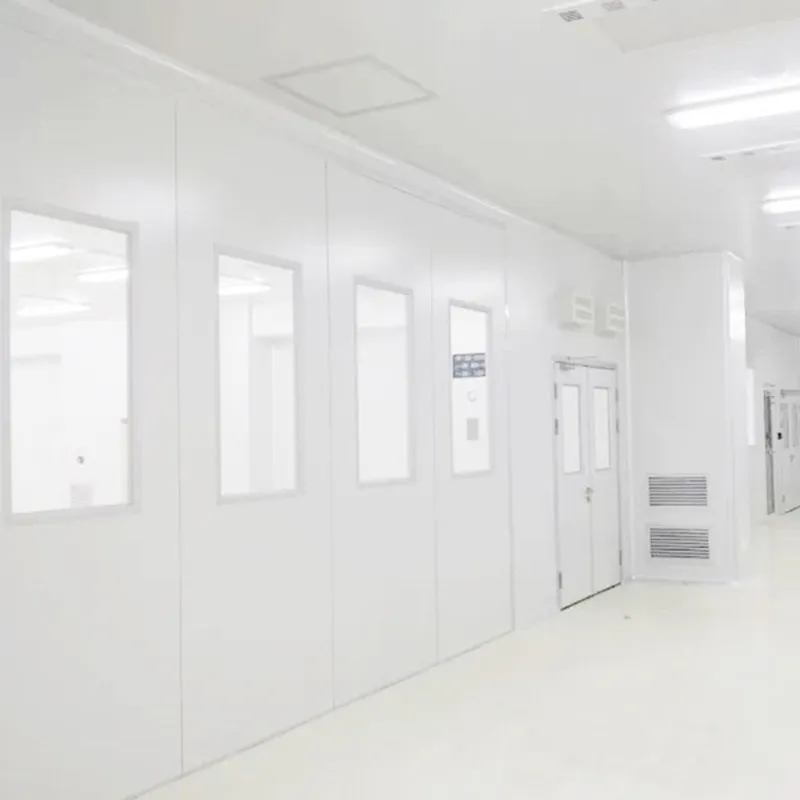

Cleanroom Single Glass Window Applications
Specified as cleanroom vision panels across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
