Ceiling Grid System
Data Center Ceiling
Factory-built aluminum ceiling grid system featuring linear slot profiles for flexible equipment installation.
Request a Free Quote
Data Center Ceiling: Factory-Built Aluminum Slot-Profile Grid
The data center ceiling is a factory-built aluminum ceiling grid system with linear slot profiles for flexible equipment, containment and airflow installation. The assembled cleanroom-grade aluminum profile grid carries cable trays, lighting and cooling containment while keeping a clean, serviceable plenum for hyperscale and edge facilities.
Supplied by an experienced cleanroom manufacturer (ISO 9001 & SIRIM), it integrates with our clean room ceiling grid range and our Malaysia prefabricated cleanrooms programme.
Data Center Ceiling Specifications
Standard configuration for the Wonclean data center ceiling. Panel material, profile and load are all customizable to project and facility requirements.
| Panel material | 0.8 mm pre-finished aluminum alloy (AA5052-H32) |
|---|---|
| Core construction | Honeycomb aluminum + closed-cell polyethylene foam |
| Fire rating | Class A (ASTM E84), Euroclass B-s1,d0, UL 263 2-hour assemblies |
| Load capacity | 120 kg/m² uniformly distributed (static) |
| Acoustic (NRC) | 0.75 |
| Dimensional tolerance | ± 0.3 mm per 1,200 mm length |
| Profiles | Modular T-bar interlocking, electropolished edges, no exposed fasteners |
| Gaskets | Silicone-free, low-VOC elastomeric |
| Validation | 72-hour humidity cycling pre-release |
| Cleanroom compatibility | ISO 14644-1 Class 5 compliant |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, load rating) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.
Data Center Ceiling Construction

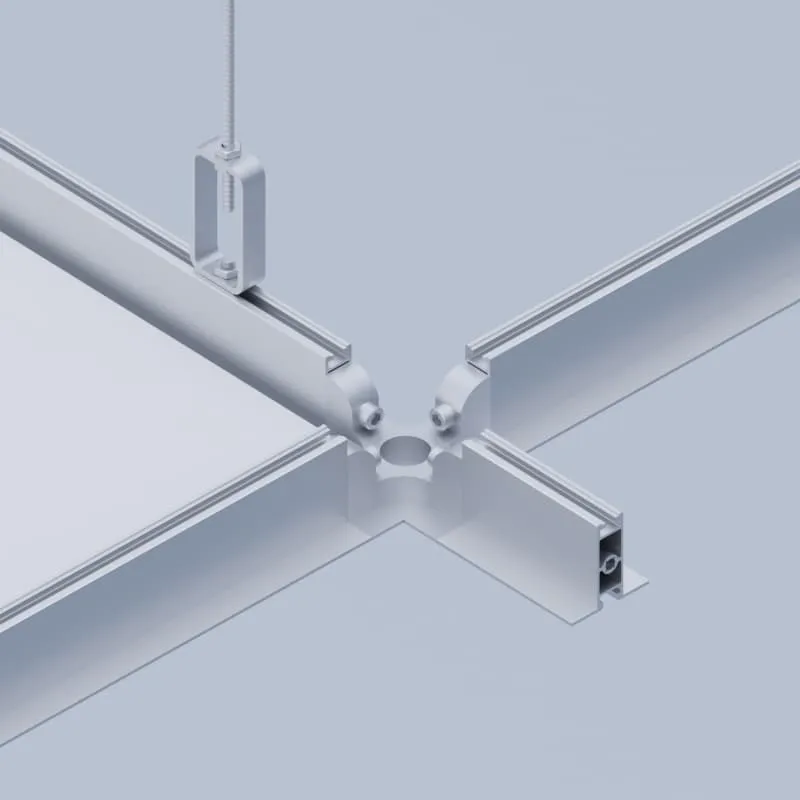

Linear slot T-bar profiles are the engineering secret. Pre-finished aluminum panels with a honeycomb-and-foam core lock into interlocking carriers with electropolished edges and no exposed fasteners — giving a non-shedding, zero-VOC ceiling that carries heavy terminal units cleanly.
Why Choose Our Data Center Ceiling
Flexible equipment mounting
Linear slot profiles allow flexible placement of terminals, lighting and sensors as racks change.
Heavy load capacity
120 kg/m² static load carries fire-suppression, cable trays and terminal units cleanly.
2-hour fire safety
UL 263-rated 2-hour assemblies with Class A / B-s1,d0 ratings for critical facilities.
Non-shedding & zero-VOC
Non-outgassing aluminum surfaces protect sensitive IT and cleanroom-grade environments.
Acoustic comfort
NRC 0.75 acoustic performance dampens noise in dense NOC and edge-compute spaces.
Tropical-validated
72-hour humidity-cycling pre-release validation suits Malaysia's hot, humid climate.
Data Center Ceiling Applications
Specified as cleanroom-grade ceilings across data centers and regulated facilities. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
