Cleanroom FFU
Hepa Supply Module(GSM)

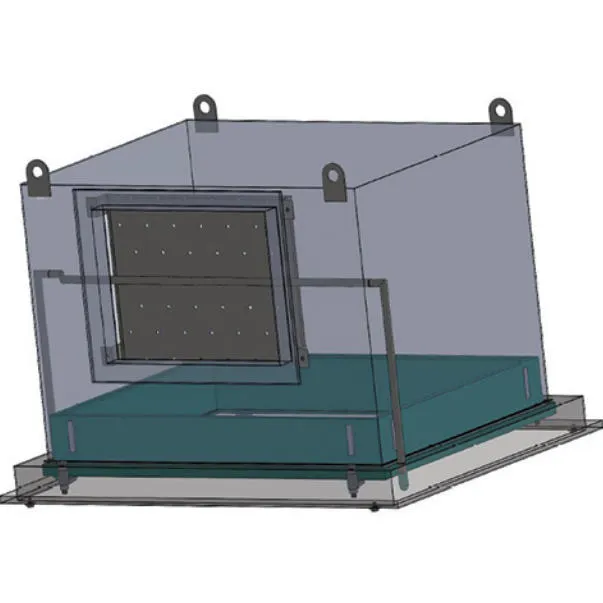

GSM housing made of 1.2mm cold-rolled steel or 2.5mm aluminum profile with unified coating. Downstream area fully welded for leak-free years of use. Camfil Leak-Lead™ design prevents structural leakage. Built-in GSF filter with special jelly liquid tank seal ensures long-term sealing.
Request a Free Quote
HEPA Supply Module (GSM): Ceiling-Integrated Clean Air Delivery
The HEPA supply module (GSM) is a field-proven, modular ceiling-integrated air-delivery unit meeting ISO Class 3–8 requirements. Built for engineering teams across Malaysia's regulated industries, it provides consistent airborne particulate control with a low-turbulence diffuser face and a leak-tested HEPA seal.
It integrates with our fan filter unit (FFU), high efficiency air outlet and HEPA supply module (PharmaSeal) ranges.
HEPA Supply Module (GSM) Specifications
Standard configuration for the Wonclean HEPA supply module (GSM). Size, filter class and control interface are all customizable to project and cleanroom classification requirements.
| Filter class | H13/H14 (EN 1822) (ULPA U15 for ISO 3–4) |
|---|---|
| Nominal face area | 610×610 / 1220×610 mm (no field cutting) |
| Airflow range | 300–1,200 m³/h (EC motor, 0–10 V / Modbus RTU) |
| Face velocity uniformity | ≥ 90% within ±5% (ISO 14644-3 Annex B) |
| Noise level | ≤ 48 dB(A) at 1.5 m (750 m³/h) |
| Frame material | Anodized aluminum 6063-T5, non-shedding, USP <797> |
| Housing | 1.2 mm cold-rolled steel or 2.5 mm aluminum profile (RAL 9016) |
| Seal | Built-in GSF filter with jelly liquid tank seal |
| Leak integrity | Zero detectable leaks (DOP/PAO per IEST-RP-CC034.3) |
| Lighting | Integrated LED task lighting (3,500 K, CRI > 90) |
| Install | Rapid-deploy grid interface, locks in under 90 seconds |
Values shown are standard/representative configurations. Confirm final certified figures (airflow calibration, leak test) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

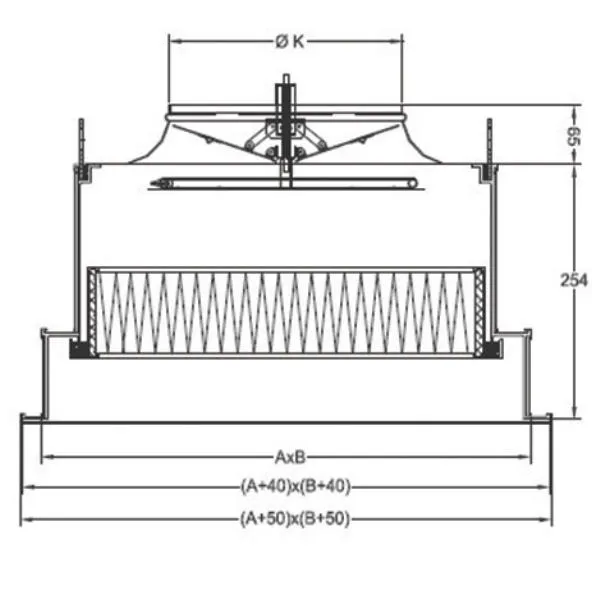

HEPA Supply Module (GSM) Construction

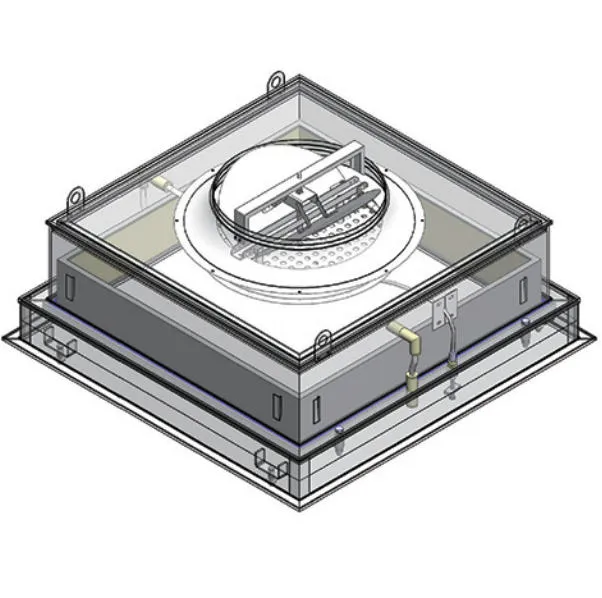

The fully welded downstream housing is the engineering secret. A GSM housing with a built-in GSF filter sealed in a jelly liquid tank delivers zero-leak operation and a Leak-Lead™ design — factory-pre-balanced with certified airflow reports and locking into the grid in under 90 seconds.
Why Choose Our HEPA Supply Module (GSM)
Zero-leak operation
Fully welded downstream housing and gel-seal filter give zero detectable leaks (DOP/PAO).
Factory-balanced airflow
Pre-balanced with certified airflow calibration reports for ±5% face-velocity uniformity.
90-second install
Rapid-deploy grid interface locks modules in under 90 seconds with no field cutting.
Aerosol challenge ready
Built-in aerosol challenge port supports in-place integrity testing and validation.
Integrated task lighting
Integrated LED task lighting (3,500 K, CRI > 90) for clear, true-color work areas.
Retrofit-friendly
Standard nominal sizes need zero modifications for retrofit and grid-deck projects.
HEPA Supply Module (GSM) Applications
Specified as ceiling HEPA supply modules across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
