HEPA Supply Module (PharmaSeal): Validated Air Delivery for GMP Suites
The HEPA supply module (PharmaSeal) is a standardized, field-installable ceiling-integrated air-delivery unit for mission-critical pharmaceutical and biologics environments. Its sealed, scannable HEPA construction supports in-situ leak testing and validation for ISO Class 3–7 aseptic suites.
It integrates with our HEPA supply module (GSM), fan filter unit (FFU) and high efficiency air outlet ranges.
HEPA Supply Module Specifications
Standard configuration for the Wonclean HEPA supply module (PharmaSeal). Size, filter class and control interface are all customizable to project and cleanroom classification requirements.
| Filtration efficiency | 99.995% @ 0.12 µm (H14, EN 1822) |
|---|---|
| Airflow capacity | 300–1,200 m³/h per module |
| Face velocity uniformity | ≥ 90% of nominal |
| Sound level | ≤ 48 dB(A) at 1 m |
| Frame dimensions | 600×600 / 1200×600 / 1200×1200 mm |
| Weight | 18–32 kg |
| Power input | 220–240 V AC, 50/60 Hz |
| Housing & seal | PHAP housing, PHF filter (EN 1822), silicone gel seal |
| Motor | Low-noise EC, 0–10 V / Modbus RTU |
| Thermal stability | < ±0.3°C surface variation |
| Leakage protection | Camfil Leak-Lead™ design prevents structural leakage |
Values shown are standard/representative configurations. Confirm final certified figures (airflow, filter integrity) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

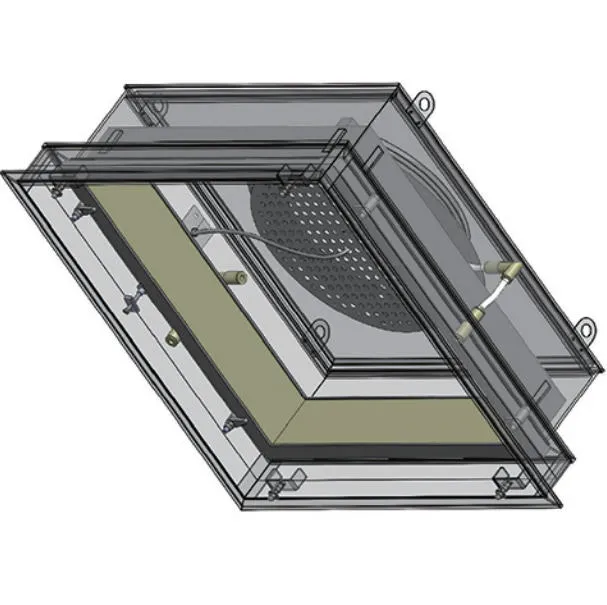

HEPA Supply Module Construction
The silicone gel seal is the engineering secret. A PHAP housing with a PHF HEPA filter seats in a gel channel for leak-free, disinfection-tolerant sealing — and the Leak-Lead™ design plus pre-aligned gasket channels enable single-person ceiling installation and sub-6-minute filter changes.
Why Choose Our HEPA Supply Module
Leak-free gel seal
Silicone gel-channel sealing with Leak-Lead™ design prevents structural leakage.
Disinfection-tolerant
Gel seal withstands frequent disinfection for aseptic and pharmaceutical environments.
Single-person install
Pre-aligned gasket channels enable ceiling installation by one technician.
Fast filter service
Filter replacement in under 6 minutes with 40% longer maintenance intervals.
Quiet & efficient
Low-noise EC motor at ≤ 48 dB(A) with 0–10 V / Modbus RTU control.
No custom ductwork
Standardized sizes integrate into hardwall and softwall grids without field cutting.
HEPA Supply Module Applications
Specified as ceiling HEPA supply modules across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
