Medical clean panel
Medical clean panel is based on medium-density fiber cement panel, UV paint is used as raw material, and the surface of the panel is painted and decorated by UV light curing process....
Request a Free Quote
Medical Clean Panel: Antibacterial UV-Cured Wall Panel for Healthcare
The medical clean panel is based on a medium-density fibre-cement board finished with UV-cured paint, giving a smooth, medical antibacterial wall panel surface that withstands repeated disinfection. It is ideal for hospitals, operating theatres and medical lab wall panels requiring hygienic, easy-clean cladding.
It is offered alongside our HPL sandwich panel and clean room partition panels, and complements our metal laboratory furniture range.
Medical Clean Panel Specifications
Standard configuration for the Wonclean medical clean panel. Facing, core and antibacterial finish are all customizable to project and cleanroom classification requirements.
| Panel type | Antibacterial PU-core medical cleanroom panel |
|---|---|
| Core material | Closed-cell polyurethane, density ≥ 42 kg/m³ (ISO 10967) |
| Face sheets | 0.5 mm SS304/316 or 1.0 mm anodized aluminum |
| Antibacterial coating | Silver-ion · > 99.9% MRSA & P. aeruginosa in 2 h |
| Fire rating | ASTM E84 Class A (flame ≤ 25, smoke ≤ 50) |
| Thermal conductivity | ≈ 0.022 W/m·K (23°C) |
| Surface roughness | ≤ 0.8 µm (steel) / ≤ 1.2 µm (aluminum) |

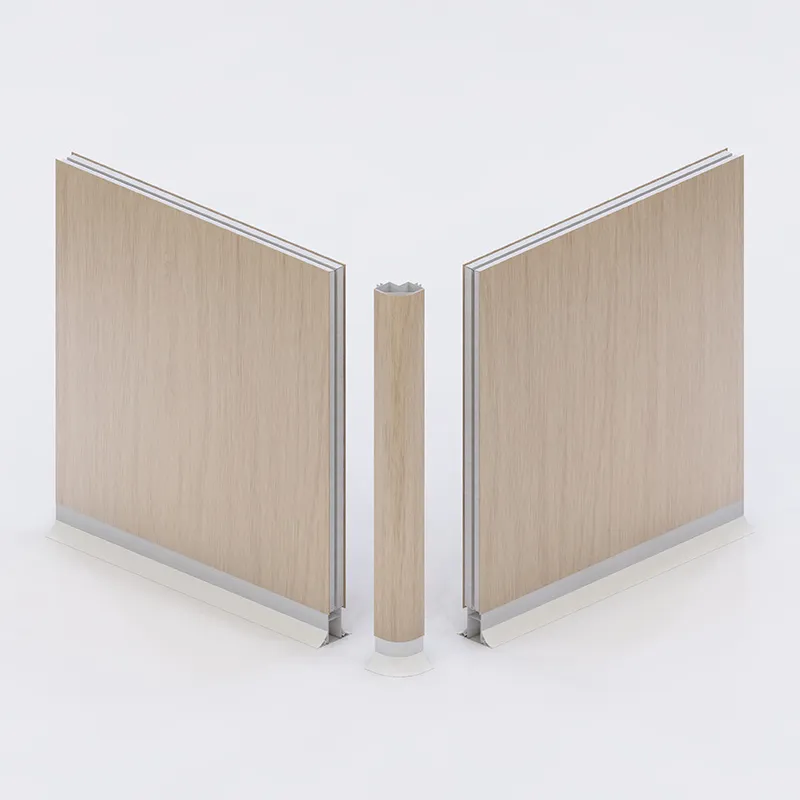

| Joint system | Tongue-and-groove with EPDM gasket (ISO 14644-3) |
| Outgassing | < 0.1 µg/g VOC |
| Dimensional stability | ± 0.15 mm/m (25–40°C range) |
| Air-tightness | ≤ 0.5 Pa pressure decay (5 min) |
| Cleanliness grade | ISO 14644-1 Class 3–8 · USP <797> |
Values shown are standard/representative configurations. Confirm final certified figures (fire test report, antibacterial test, air-tightness) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.
Medical Clean Panel Construction
The silver-ion antibacterial facing is the engineering secret. Non-porous metal skins over a closed-cell PU core create a seamless, non-shedding barrier that resists microbial colonization — achieving > 99.9% reduction of MRSA and Pseudomonas aeruginosa within two hours.
Why Choose Our Medical Clean Panels
Active antibacterial surface
Silver-ion coating reduces MRSA and Pseudomonas aeruginosa by > 99.9% within two hours for infection control.
Seamless & non-porous
Smooth metal facings and gasketed joints prevent particle shedding and microbial colonization.
Low-outgassing purity
< 0.1 µg/g VOC protects photoresist and sensitive medical and semiconductor processes.
Class A fire safety
ASTM E84 Class A facing with low smoke for safe, regulated medical and aseptic environments.
FFU & grid integration
Seamless integration with ceiling grids and FFU systems for a clean, flush medical envelope.
Lower cleaning labor
Non-porous antibacterial surfaces cut cleaning labor by 35% with a 15+ year service life.
Medical Clean Panel Applications
Specified as medical cleanroom wall panels, ceiling panels and partition systems across hospitals, laboratories and regulated industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
Request a Free Quote Chat on WhatsAppWhere should air showers be installed in a cleanroom?
Install between changing rooms and clean areas, or between ISO 8/ISO 7 classified areas and unclean areas. Personnel pass through after changing into cleanroom clothing but before entering the controlled environment
What is involved in the construction of a modular cleanroom?
To assemble laboratory spaces efficiently, modular components are preferred. An assembled cleanroom utilizes prefabricated sections to reduce on-site construction time. The underlying aluminum profile system provides the necessary framework for mounting panels and doors, ensuring precision alignment and structural rigidity throughout the facility.
What are the key considerations for air shower design?
Selecting the right air shower requires careful planning. Proper air shower design ensures effective personnel decontamination before entering controlled environments. Specifications depend on room size. Consulting an experienced air shower manufacturer helps determine optimal placement. Compliance with standards is essential. Regular maintenance schedules must be established to sustain performance over time.
What defines quality in clean room door systems?
Sealing integrity is vital. air tight sliding clean room doors prevent pollutants from entering. Each air tight sliding cleanroom door must meet pressure ratings. Reputable air tight sliding cleanroom door manufacturers provide leakage certification. Automatic mechanisms reduce human contact risks. Material selection prioritizes durability and ease of cleaning to meet hygiene protocols. Installation requires precise alignment.
